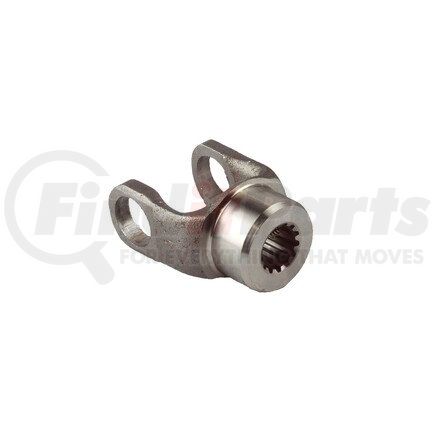

(888) 312-8812 Login SignupDANA 10-4-481 1000 Series Power Take Off (PTO) End Yoke - Steel, 2.500 C/L To End Hub S, Splined Hole
Tap to view 3 more
MSRP: $119.81
$10799
Save $11.82
Limited availability at this price!
In Stock
Get it by Thursday, Jan 29
DANA 10-4-481 Part Description
Manufacturer
Specifications
| Spline OD | 0.875 |
| No of Splines | 13 |
| R Hub Dia | 1.625 |
| S CL to End | 0 |
| CBore Depth | 6 |
| Style | 2.5 |
| Q Len Thru Hole-1 | 0.375 |
| OutsideDescription | NEAPCO Part # 10-4481 is a part, use Spicer part -> |
DANA 10-4-481 Specifications
Product Attributes
| Series | 1000 |
| Material | Steel |
| Spline Count | 13 |
| Type | Splined Hole |
| Hub Diameter R | 1.625 IN |
| Involute Spline | N |
| Yoke Bearing Dimension (In) D | 0.938 IN |
| Set Screw Location W | 6 |
| Major Diameter | 0.875 IN |
| Inside Yoke Dimension (In) K | 1.500 IN |
| C/L To End Hub S | 2.500 IN |
| Set Screw Hole Diameter (In) | 0.375 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708995300 |
| Harmonized Tariff Code (HTS) | 8708995300 |
| UPC | 00023913231279 |
| VMRS Code | 056002014 |
DANA 10-4-481 Cross References
| Brand | Part Number |
|---|---|
| SP104481 | |
| AGCO | AG605316 |
| Daimler Truck North America | SP 10 4 481, SP 10 4 481HP |
| Dana Commercial Vehicle Service Parts | 2104-104481 |
| Freightliner | SP 10 4 481, SP 10 4 481HP |
| International Harvester (IHC) | 104481, D104481, E104481 |
| MERITOR | 10N-4-481 |
| Mack | 2104-104481 |
| Meritor | 10N4481 |
| Navistar | 104481, D104481, DS104481, E104481 |
| Neapco OE Series | 10-4481 |
| Paccar Parts | 10-4-481 |
| Peterbilt | 10 4 481 |
| Rockwell International | 10N-4-481 |
| UAP | 10-4-481 |
| Volvo | 2104-104481, SP 104481 |
DANA 10-4-481 Customer Reviews
No reviews yet
Be the first to review this product!
DANA 10-4-481 Manufacturer Information
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
