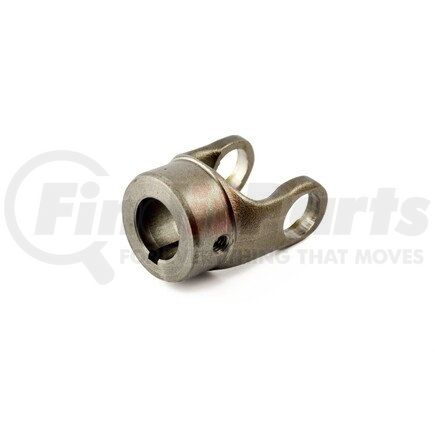

(888) 312-8812 Login SignupDANA 10-4-143 1000 Series Power Take Off (PTO) End Yoke - Steel, 2.500 C/L To End Hub S, ISR Yoke Style
Tap to view 1 more
$13199
Limited availability at this price!
In Stock
Get it by Wednesday, Jan 7
DANA 10-4-143 Part Description
Manufacturer
Specifications
| Brand | Spicer |
| Series | 1000 |
| Yoke Style | ISR |
| Hub Diameter R | 2.000 |
| C/L To End Hub S | 2.500 |
| Type | Straight Round Hole |
| Inside Yoke Dimension (In) K | 1.500 |
| Yoke Bearing Dimension (In) D | 0.938 |
| Hole Diameter (In) P | 1.125 |
| Sae Keyway Width (In) X | 0.250 |
| Set Screw Hole Diameter (In) | 0.375 |
| Keyway Location W | 3 |
| Set Screw Location W | 12 |
| Length Thru Hole Q | 1.030 |
| VMRS | 056002014 |
| Material | Steel |
| Joint Angle #1 | 60 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 0.99 LB |
| Country of Origin | United States |
DANA 10-4-143 Specifications
Product Attributes
| Series | 1000 |
| Material | Steel |
| Type | Straight Round Hole |
| Hole Diameter (In) P | 1.125 IN |
| Hub Diameter R | 2.000 IN |
| Length Thru Hole Q | 1.030 IN |
| Yoke Bearing Dimension (In) D | 0.938 IN |
| Yoke Style | ISR |
| Keyway Location W | 3 |
| Sae Keyway Width (In) X | 0.250 IN |
| Set Screw Location W | 12 |
| Inside Yoke Dimension (In) K | 1.500 IN |
| C/L To End Hub S | 2.500 IN |
| Joint Angle #1 | 60 |
| Set Screw Hole Diameter (In) | 0.375 IN |
Additional Information
| Country of Origin (Primary) | US |
| UPC | 00023913233877 |
| VMRS Code | 056002014 |
DANA 10-4-143 Part Interchanges
| Brand | Part Number |
|---|---|
| Meritor | 10N4143 |
| Neapco OE Series | 10-4143 |
| Daimler Truck North America | SP 10 4 143, SP 10 4 143HP |
| Dana Commercial Vehicle Service Parts | 10-4-773, 2104-104143 |
| Volvo | 2104-104143, SP 104143 |
| International Harvester (IHC) | 104143, D104143, E104143, ZKC104143 |
| Navistar | 104143, D104143, DS104143, E104143, ZKC104143 |
| Paccar Parts | 10-4-143 |
| Rockwell International | 10N-4-143 |
| Mack | 2104-104143 |
| Freightliner | SP 10 4 143, SP 10 4 143HP |
| UAP | 10-4-143 |
DANA 10-4-143 Cross References
We have 5 alternatives for the 10-4-143 by DANA:
DANA 10-4-143 Customer Reviews
No reviews yet
Be the first to review this product!
DANA 10-4-143 Manufacturer Information
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
