DANA SPICER 10-4-101 Part Description
Manufacturer
Product Description

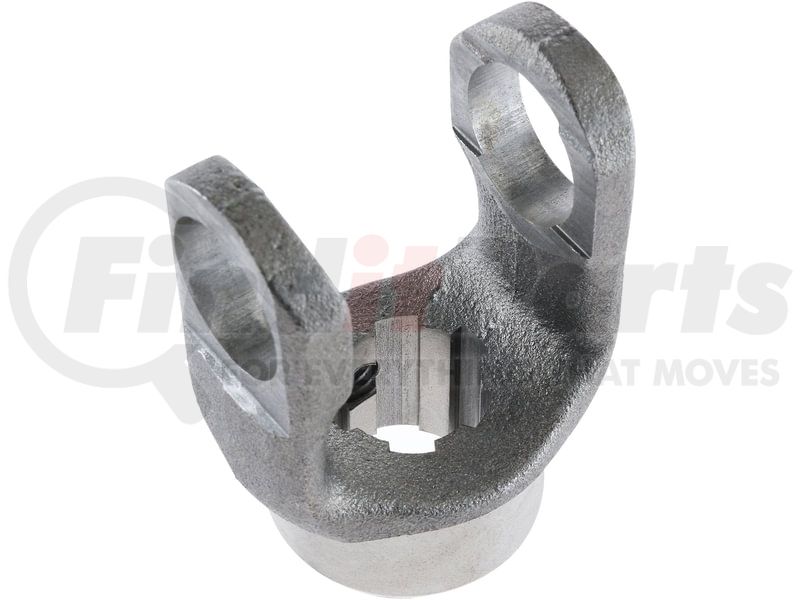

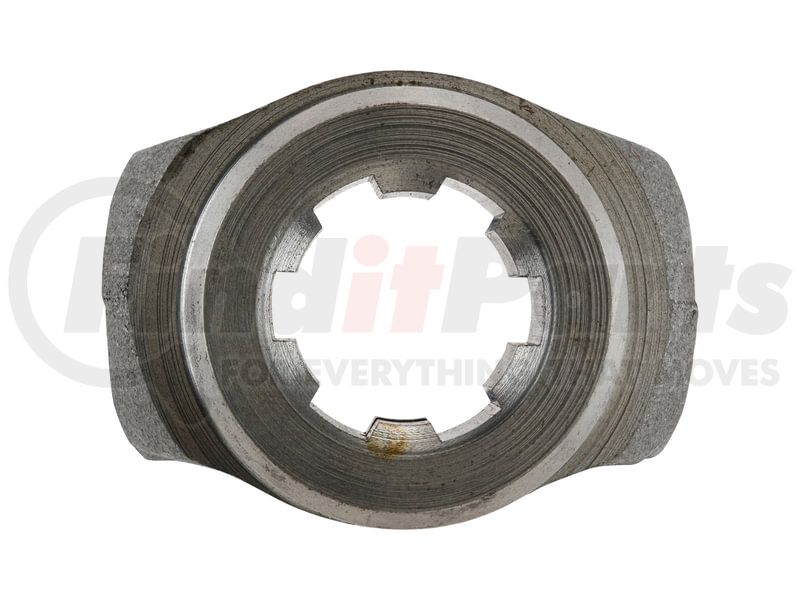

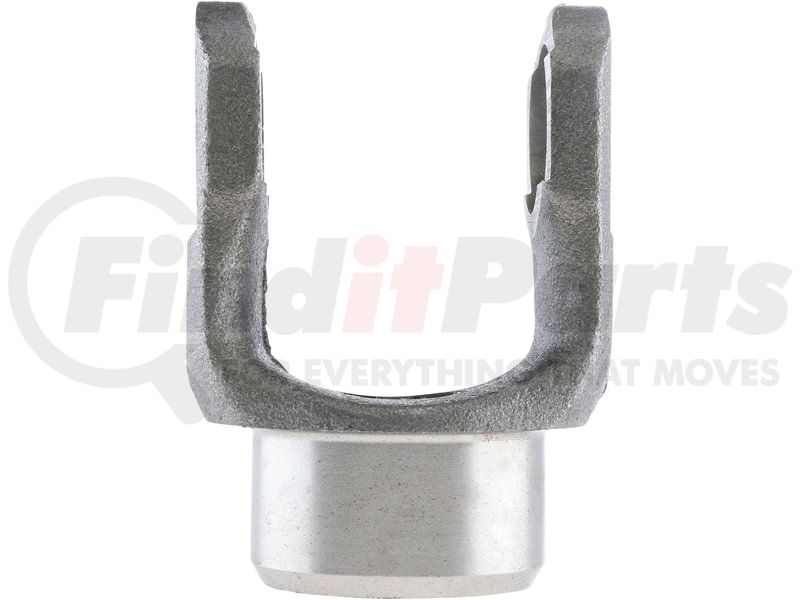

Power Take Off (PTO) Shaft End Yoke
Features & Benefits
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested and validated to rigorous OE specifications.
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Specifications
| Brand | Spicer |
| Series | 1000 |
| Spline Count | 6 |
| Hub Diameter R | 1.625 |
| C/L To End Hub S | 2.500 |
| Type | Splined Hole |
| Inside Yoke Dimension (In) K | 1.500 |
| Yoke Bearing Dimension (In) D | 0.938 |
| Major Diameter | 1.000 |
| Involute Spline | N |
| Set Screw Hole Diameter (In) | 0.375 |
| Set Screw Location W | 3 |
| VMRS | 056002014 |
| Material | Steel |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 0.36 LB |
| Country of Origin | United States |
DANA SPICER 10-4-101 Specifications
Product Attributes
| Series | 1000 |
| Material | Steel |
| Spline Count | 6 |
| Type | Splined Hole |
| Hub Diameter R | 1.625 |
| Involute Spline | N |
| Yoke Bearing Dimension (in) D | 0.938 |
| Set Screw Location W | 3 |
| Major Diameter | 1.000 |
| Inside Yoke Dimension (In) K | 1.500 |
| C/l To End Hub S | 2.500 |
| Set Screw Hole Diameter (In) | 0.375 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708996890 |
| UPC | 00023913236526 |
| VMRS Code | 056002014 |
DANA SPICER 10-4-101 Cross References
| Brand | Part Number |
|---|---|
| Daimler Truck North America | SP 10 4 101HP |
| Dana Commercial Vehicle Service Parts | 2104-104101 |
| Freightliner | SP 10 4 101HP |
| International Harvester (IHC) | 104101, D104101, E104101 |
| Mack | 2104-104101 |
| Navistar | 104101, D104101, DS104101, E104101 |
| PACCAR | 10-4-101 |
| Paccar Parts | 10-4-101 |
| UAP | 10-4-101 |
| Volvo | 2104-104101, SP 104101 |
