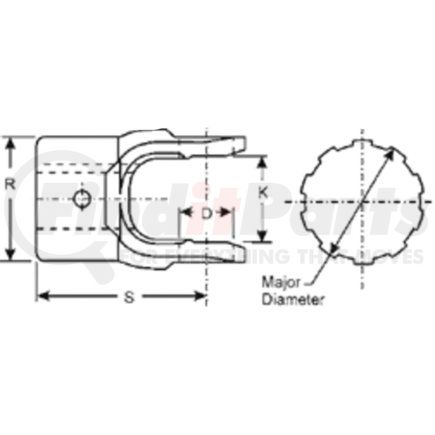

Name: Dana 10-4-101 1000 Series Power Take Off (PTO) End Yoke - Steel, 2.500 C/L To End Hub S, Splined Hole
SKU: 104101
Price: 67.99 USD
Availability: InStock

DANA part description

Specifications

Brand	Spicer
Series	1000
Spline Count	6
Hub Diameter R	1.625
C/L To End Hub S	2.500
Type	Splined Hole
Inside Yoke Dimension (In) K	1.500
Yoke Bearing Dimension (In) D	0.938
Major Diameter	1.000
Involute Spline	N
Set Screw Hole Diameter (In)	0.375
Set Screw Location W	3
VMRS	056002014
Material	Steel
Package Type	EACH
Package Qty	1
Weight	0.36 LB
Country of Origin	United States

Product Description

Features & Benefits

Genuine OE quality. Tested and proven.
Built to meet OE standards set by Dana.
Tested and validated to rigorous OE specifications.
Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.

Product Attributes

Series	1000
Material	Steel
Spline Count	6
Type	Splined Hole
Hub Diameter R	1.625 IN
Involute Spline	N
Yoke Bearing Dimension (In) D	0.938 IN
Set Screw Location W	3
Major Diameter	1.000 IN
Inside Yoke Dimension (In) K	1.500 IN
C/L To End Hub S	2.500 IN
Set Screw Hole Diameter (In)	0.375 IN

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708996890
Harmonized Tariff Code (HTS)	8708996890
UPC	00023913236526
VMRS Code	056002014

Part Interchanges

DANA 10-4-101 Cross Reference

We have 2 alternatives for the 10-4-101 by DANA:
