Name: Dana 100-4-961-1X SPL100 Series Differential End Yoke - Assembly, Steel, BS Yoke Style, 39 Spline
SKU: 10049611x
Price: 284.49 USD
Availability: InStock

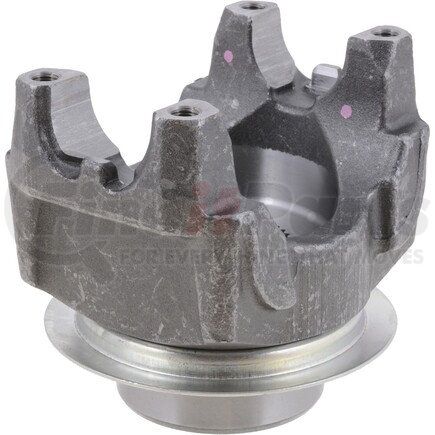

DANA part description

End yoke assy

Dana Holding Corporation Spicer SPL100 Series End Yoke Assembly

The Dana Holding Corporation Spicer SPL100 Series end yoke efficiently links the transmission to the drive axle. Installing this component addresses the signs of a failing yoke and u-joint, which include squeaking noise when moving forward or reverse, vibration when running at high speeds, and many others.

Features & Benefits

Top-quality SPL100 series pinion shaft end yoke
Durably engineered to improve a vehicle or a construction equipment’s performance and efficiency
Integrates cutting-edge technologies to make a vehicle or machine more productive on the job site
Meets strict quality standards for dependable functionality even under the harshest operating environment
Backed by the company’s over 115 years of innovation and technological revolutions

Features & Benefits

Genuine OE quality. Tested and proven.
Built to meet OE standards set by Dana
Tested and validated to rigorous OE specifications
Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace

Product Attributes

Series	SPL100
Material	Steel
Spline Count	39
Type	Splined Hole
Assembly	Y
Hub Diameter R	3.000 IN
Includes Slinger/Plug	Y
Involute Spline	Y
Length Thru Hole Q	2.284 IN
Outside Yoke Dimension (In) E	5.375 IN
Yoke Bearing Dimension (In) D	1.625 IN
Yoke Style	BS
Major Diameter	2.024 IN
C/L To End Hub S	4.750 IN

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708996890
Harmonized Tariff Code (HTS)	8708996890
UPC	00023913259402
VMRS Code	022003072

Part Interchanges

Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
