DANA part description

Brand: Spicer
Series: 1710
Spline Count: 49
Yoke Style: HR
Hub Diameter R: 3.819
Centerline to End Hub S: 6.26
Involute Spline: I
VMRS: 22003072
Length Thru Hole Q: 2.125
C-Bore Depth: 0.12
Includes Slinger/Plug: Y
Assembly: Y
Joint Angle #1: 45
C-Bore Diameter: 2.64
O.D. of Spline: 2.544
Package Type: Each
Package Quantity: 1
Weight: 16.05 lbs.
Country of Origin: Mexico
UPC Code: 023913223670

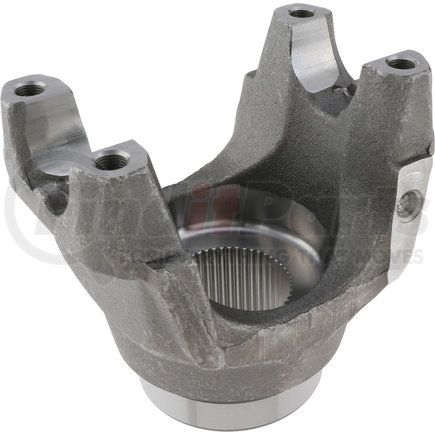

Dana Holding Corporation Spicer 1710 Series End Yoke

The Dana Holding Corporation Spicer 1710 Joint Series end yoke efficiently links the transmission to the drive axle. Installing this component addresses the signs of a failing yoke and u-joint, which include squeaking noise when moving forward or reverse, vibration when running at high speeds, and many others.

Features & Benefits

  • Durably engineered to improve a vehicle or a construction equipment’s performance and efficiency
  • Integrates cutting-edge technologies to make a vehicle or machine more productive on the job site
  • Meets strict quality standards for dependable functionality even under the harshest operating environment
  • Backed by the company’s over 115 years of innovation and technological revolutions

Product Attributes

Series 1710
Spline Count 49
Assembly Y
Hub Diameter R 3.819 IN
Includes Slinger/Plug Y
Involute Spline I
Length Thru Hole Q 2.125 IN
Yoke Style HR
C/L To End Hub S 6.260 IN
O.D. of Spline 2.544 IN
C-Bore Depth 0.120 IN
C-Bore Diameter 2.64 IN
Joint Angle #1 45

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8708990000
Harmonized Tariff Code (HTS) 8708990000
UPC 00023913223670
VMRS Code 022003072

Part Interchanges

Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
