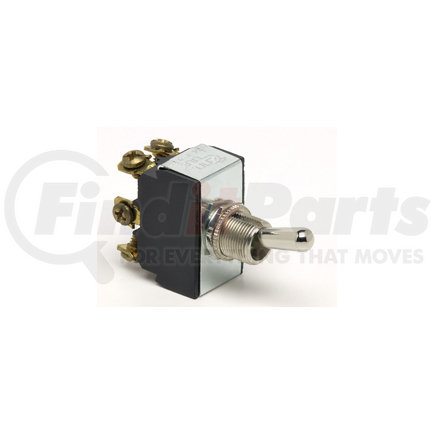

Name: Cole Hersee 5590 SWITCH, TOGGLE
SKU: 5590
Price: 10.97 USD
Availability: OutOfStock

COLE HERSEE part description

Cole Hersee toggle switches are manufactured in many different configurations. They're available with ball, short or long handles, paddle and illuminated actuators. Housing are plastic, plastic/metal combination or die cast. Weather resistant options are available that make any standard toggle switch adaptable for use in applications where moisture, dirt and similar elements are present.
Toggle switch accessories include weather resistant boots, face plates, switch guards, and handle extensions.
All products listed in this section can be found in Section B of the Cole Hersee D-275 CATALOG.

Standard handle.
Universal applicationIn Engineering, an application refers to a specific use for a device. For example, a Cole Hersee brand LVD finds an application in police cruisers (as well as many other uses)..
Silver contactsA pair of devices that touch or come apart at the point where the switch throw makes or breaks the circuit. Silver contacts are common because of their low conductivity and low electrical resistance. Many Cole Hersee switches have silver contacts..
Mounting stem is nickel-plated brass 15/32" -32 thread, 15/32" (11.9mm) long, and fits panels up to 9/32" (7.1mm)
Phenolic housing, with plated steel cap.
Nickel-plated brass mounting hardware.
Screw terminals: 6-32 screws.
25A at 12V, 15A at 24V, and 10A at 36V DC.
Up: On, Down: On. Six screw terminals.

Switch type	Toggle
Description	Heavy Duty Toggle Switch
Circuitry	DPDT
Electrical Rating	25A at 12V DC
Contacts	Silver
Housing	Plastic with plated steel cap
Up position	On
Center position	None
Down position	On
Terminals	6 screw
Handle material	Nickel-plated brass
Handle type	Standard
Handle size: inches	11/16" Long
Handle size: mm	17.46mm
Mounting hardware	Nickel plated brass face and hex nut
Mounting stem material	Nickel plated brass
Mounting stem dimmensions	15/32" -32 thread, 15/32" (11.90mm) Long
Mounting hole dimension	15/32" (11.90mm) Panel Hole
Panel thickness	Up to 1/4" (6.35mm) thick

Cole Hersee Heavy Duty Series Switch

The Cole Hersee Heavy Duty Series switch is the most robust toggle switch in the Cole Hersee catalog. They are suitable for universal applications in heavy duty and commercial vehicles and equipment.

Features & Benefits

Versatile design that’s suitable for use with various types of actuators and circuitries
Heavy duty cap and housing with nickel-plated brass face nuts
Mounting, body, and actuator are engineered for ease-of-use and extended product lifecycle
Built for and tested for use in harsh environments

COLE HERSEE 5590 Cross Reference

We have 5 alternatives for the 5590 by COLE HERSEE:

Cole Hersee® is highly valued in the heavy duty truck industry. It is a leading manufacturer of heavy-duty battery master switches that are widely used as OE equipment by leading heavy-duty vehicle manufacturers. These switches are essential safety components for trucks as they help prevent theft, tampering, electrical fires, and battery drain. Founded in 1924, Cole Hersee is committed to improving vehicle safety by partnering with ECCO Safety Group Australia (ESGA) to establish and implement safety standards for trucks that drive onto mining sites. Its products are also manufactured in its ISO 9001:2008-certified facility and undergo strict testing to ensure safety and reliability.
