(888) 312-8812 Login SignupRAYBESTOS 680768R Raybestos R-Line Brake Rotor
MSRP: $186.55
$10049
Save $86.06
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5
RAYBESTOS 680768R Part Description
Manufacturer
Product Description

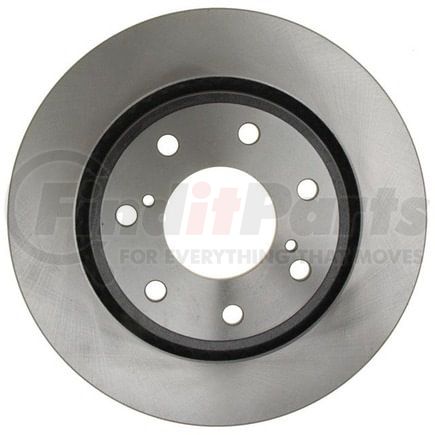

Raybestos R-Line Brake Rotor
Application Summary
2014-2010 Ford F-150 Front, 2014-2012 Ford Lobo Front
RAYBESTOS 680768R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.545 IN |
| Center Hole Diameter | 90.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.26 IN |
| Discard Thickness | 32 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.302 IN |
| Inside Diameter | 236.25 MM |
| Mounting Bolt Hole Circle Diameter | 5.906 IN |
| Mounting Bolt Hole Circle Diameter | 150 MM |
| Mounting Bolt Hole Diameter | 0.618 IN |
| Mounting Bolt Hole Diameter | 15.7 MM |
| Mounting Bolt Hole Quantity | 7 |
| Nominal Thickness | 1.34 IN |
| Nominal Thickness | 34.05 MM |
| Outside Diameter | 13.776 IN |
| Outside Diameter | 349.9 MM |
| Overall Height | 1.949 IN |
| Overall Height | 49.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 7 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00829352778746 |
RAYBESTOS 680768R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 290860, G09294SD, YH145698, YH290860, YH290860C, YH290860P |
| AUTOZONE | 42278DG, 75003, 75003DG, 75003DL |
| BENDIX | PRT6053, SDR6053 |
| BOSCH | 20010326, 20011514 |
| BRAKEBEST | 20010326, 20011514, 680768, 680768FZN, 680768PER, 680768R, 680768RGS |
| BREMBO | 09.C274.20 |
| CENTRIC | 120.65134, 120.65134CRY, 121.65134, 126.65134CSL, 126.65134CSR, 126.65134SL, 126.65134SR, 127.65134L, 127.65134R, 128.65134L, 128.65134R, 320.65134 |
| Centric Parts | 120.65134, 120.65134CRY, 121.65134, 126.65134CSL, 126.65134CSR, 126.65134SL, 126.65134SR, 127.65134L, 127.65134R, 128.65134L, 128.65134R, 320.65134 |
| DURA CORP | BR54173, BR900848 |
| DuraGo | 900848, BR900848 |
| FORD | AL3Z1125A, CL3Z1125A, CL3Z1125C |
| MAGMA PRODUCTS | PMR205241 |
| MONROE BRAKES | BD180286 |
| NEWTEK AUTOMOTIVE | 54173 |
| Newtek Automotive USA | 54173 |
| PROMAX | 14-54173 |
| QUALIS | 42275 |
| UAP | R65134 |
| Ultra Brake | 54451 |
| WAGNER BRAKE | BD180286, BD180286E |
| WINHERE | 6621216 |
| WORLDPARTS | WS1-154173 |
RAYBESTOS 680768R Fits Vehicles
- Ford Lobo (2012-2014)
- Ford F-150 (2010-2014)
