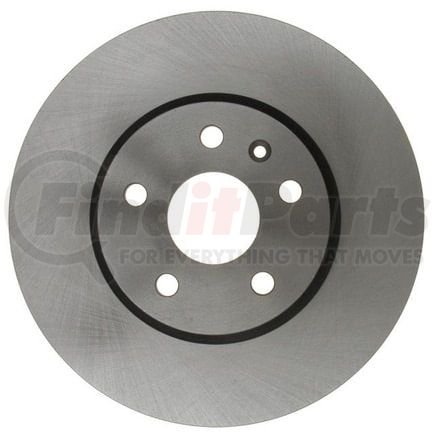

Name: Raybestos 580746R Raybestos R-Line Brake Rotor
SKU: 580746r
Price: 69.99 USD
Availability: InStock

RAYBESTOS part description

Product Description

Raybestos R-Line Brake Rotor

Application Summary

2017-2010 Chevrolet Equinox Front, 2017-2010 GMC Terrain Front, 2015-2013 Chevrolet Malibu Front, 2015-2010 Chevrolet Camaro Front, 2020-2014 Chevrolet Impala Front, 2016-2010 Buick LaCrosse Front, 2017-2011 Buick Regal Front

Product Attributes

ABS Tone Ring Included	No
Bearings Included	No
Center Hole Diameter	2.65 IN
Center Hole Diameter	67.3 MM
Construction	Full Cast
9565	Conventional
9540	Non-Directional
Discard Thickness	1.063 IN
Discard Thickness	27 MM
Harmonize Code	8708.30.5030
Inside Diameter	7.5 IN
Inside Diameter	190.5 MM
Misc. Holes	1
Mounting Bolt Hole Circle Diameter	4.72 IN
Mounting Bolt Hole Circle Diameter	119.9 MM
Mounting Bolt Hole Diameter	0.638 IN
Mounting Bolt Hole Diameter	16.2 MM
Mounting Bolt Hole Quantity	5
Nominal Thickness	1.181 IN
Nominal Thickness	30 MM
Outside Diameter	12.638 IN
Outside Diameter	321 MM
Overall Height	2.008 IN
Overall Height	51 MM
Salability Restrictions	No
Solid Or Vented Type Rotor	Vented
Stud/Lug Hole Quantity	5
Surface Type	Smooth
UNSPSC Code	25171715

Additional Information

Country of Origin (Primary)	CN
UPC	00829352778623

Part Interchanges

RAYBESTOS 580746R Cross Reference

We have 63 alternatives for the 580746R by RAYBESTOS:

Fits Vehicles

Chevrolet Corvette (2020-2023)
Chevrolet Malibu Limited (2016)
Chevrolet Impala (2014-2020)
Chevrolet Malibu (2013-2015)
Buick Allure (2010)
Buick Regal (2011-2017)
Chevrolet Equinox (2010-2017)
GMC Terrain (2010-2017)
Buick LaCrosse (2010-2016)
Chevrolet Camaro (2010-2015)
