(888) 312-8812 Login SignupGATES 23586 Premium Molded Coolant Hose
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 23586 Part Description
Manufacturer
Product Description

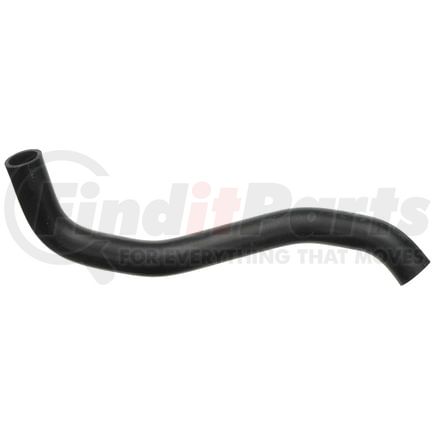

Premium Molded Coolant Hose
Application Summary
2011-09 Suzuki, Grand Vitara, V-6 3.2 L, Lower
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 23586 Specifications
Product Attributes
| Centerline Length | 21.8 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1.31 in |
| End 2 Inside Diameter | 1.31 in |
| Contains Spring | No |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 554 MM |
| End 1 Inside Diameter | 33 MM |
| End 2 Inside Diameter | 33 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00770075423560 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 23586 Cross References
| Brand | Part Number |
|---|---|
| 151GR-06X100, 42613586 | |
| ACDelco | 24666L |
| CONTINENTAL AG | 66436 |
| Carquest | 23586 |
| Continental Belt | 66436, E91501 |
| Goodyear | 66436 |
| NAPA Belts/Hose | 16298 |
| Suzuki | 1785179K00 |
GATES 23586 Fits Vehicles
- Suzuki Grand Vitara (2009-2010)
GATES 23586 Customer Reviews
No reviews yet
Be the first to review this product!
GATES 23586 Questions & Answers
No questions yet
Be the first to ask a question about this product!
