(888) 312-8812 Login SignupBAER 2301049 Baer Brakes BIG Claw Performance Rotors, Front
Tap to view 3 more
$1,07849
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 31
BAER 2301049 Part Description
Manufacturer
Product Description

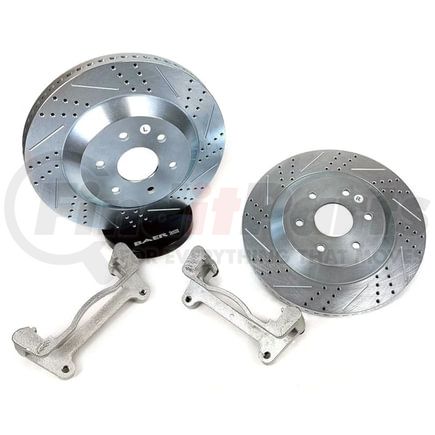

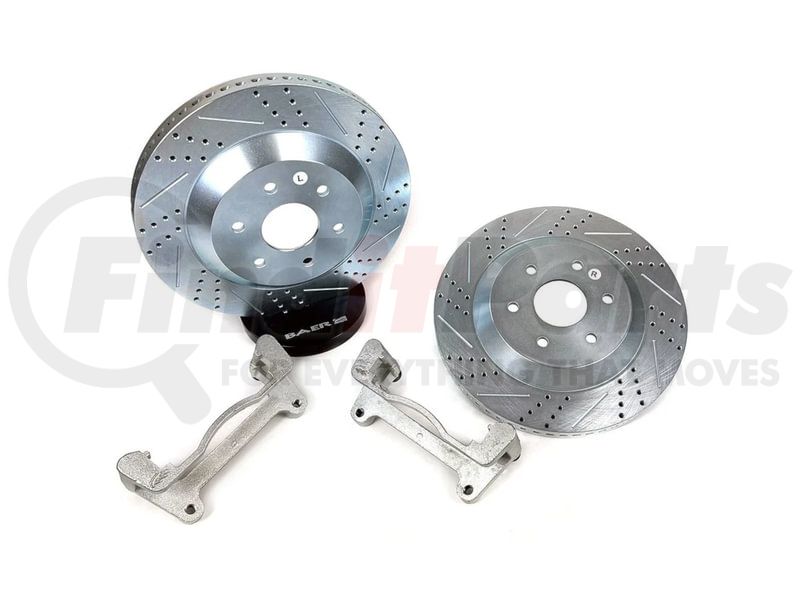

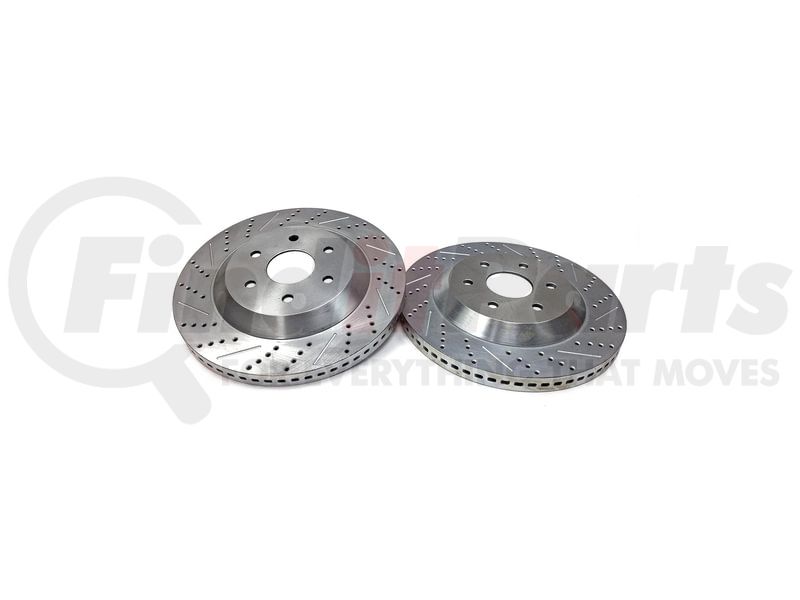

Baer Brakes BIG Claw Performance Rotors, Front
Features & Benefits
- Larger Than Stock Rotor for Increased Brake Torque and Reduced Stopping Distance (Use Template Below to Verify Wheel Fitment including Spare Tire/Wheel))
- Cross-Drilled & Slotted to Allow an Escape Route for the Dust and Gasses Produced During Braking for a Consistent Pedal Feel
- Features 1-Piece, Purpose-Cast Rotor with Increased Mass in Friction Area for Better Heat Absorption
- Directionally Vaned Rotor Acts Like a Centrifugal Pump to Maximize Air Flow for Better Heat Dissipation and Cooling
- Direct Bolt-on System, No Bleeding of the Brakes Required

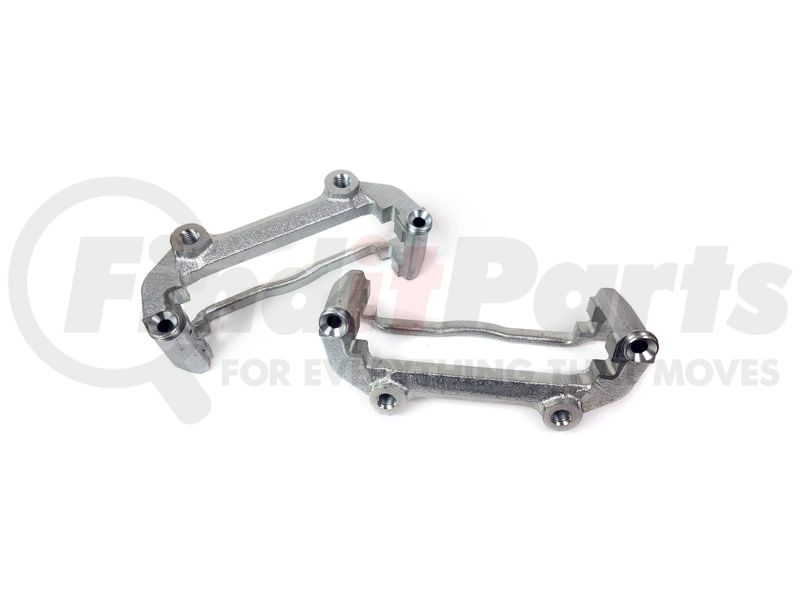

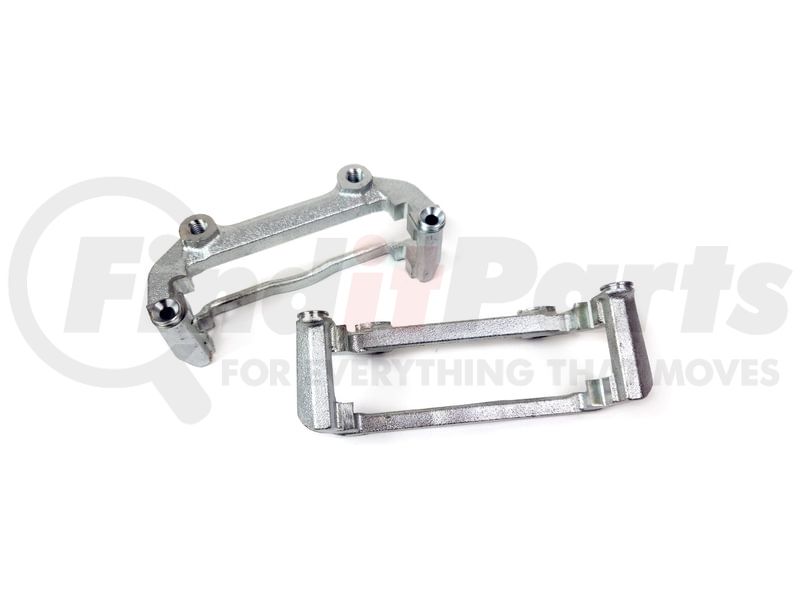

- Caliper Relocation Bracket (Included), Reuses OE Pad Abutment Clips and Hardware, Retains OE Pad Fitment
- Slot, Drilled & Zinc Plated Finish Provides a Brilliant Visual Impact Behind Large Open Wheels
ERDISPD1 GM PU
BAER 2301049 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Applications | GM 1500 SUV 00-18 |
| Axle | Front |
| Box Count | 1 |
| Brand | Baer Brakes |
| Category | Brake |
| Center Hole Diameter | 3.094 IN |
| Center Hole Diameter | 78.588 MM |
| Construction | One Piece |
| Construction | Full Cast |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Directional |
| Discard Thickness | 1.098 IN |
| Discard Thickness | 27.900 MM |
| Emission Code | 6 |
| Export Description | Brake Components |
| Grade Type | Performance |
| Material | Cast Iron |
| Min Wheel Dia (verify using template) | Minimum Wheel Diameter Will Vary Depending on Specific Wheel, Always use Template to Verify Fitment in a Certain Wheel |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 29.997 MM |
| Outside Diameter | 15.000 IN |
| Outside Diameter | 381 MM |
| Overall Height | 55.296 MM |
| Overall Height | 2.177 IN |
| Part Type | Disc Brake Rotor Set |
| Product Type | Big Claw Rotors |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Rust Resistant Coating | Yes |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Circle Diameter | 139.7 MM |
| 9692 | 5.5 IN |
| Stud/Lug Hole Quantity | 6 |
| Sub Category | Drums and Rotors |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | It is recommended to also verify fitment of spare tire/wheel |
| Title | BIG Claw Disc Brake Rotors Front |
| Warning | California Proposition 65 |
| Weight | 31.93 LB |
Additional Information
| Warranty Special | Manufacture Limited 1 Year Warranty Warranty |
| Warranty Special UOM | TX |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708.30.50 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| EAR99 | |
| UPC | 00844165004257 |
BAER 2301049 Fits Vehicles
- GMC Yukon XL 1500 (2007-2014)
- GMC Yukon (2007-2018)
- GMC Sierra 1500 (2005-2018)
- GMC Yukon XL (2015-2018)
- Chevrolet Tahoe (2007-2018)
- Chevrolet Suburban 1500 (2007-2014)
- Chevrolet Silverado 1500 (2005-2018)
- Chevrolet Suburban (2015-2018)
- Cadillac Escalade (2007-2018)
- Cadillac Escalade EXT (2007-2013)
- Cadillac Escalade ESV (2007-2018)
