MOOG 16H003 Part Description
Manufacturer
Product Description
CV Axle Assembly
Features & Benefits
- KEEPS DIRT & MOISTURE OUT -- Problem Solver thermoplastic boot not only keeps water and dirt out to prevent premature failure, but it can also withstand extreme temperatures (-50degF to 284degF)
- ADDED RUST PROTECTION -- Specially engineered coating applied to intermediate shaft and inboard and outboard housings to inhibit premature wear caused by rain, snow, salt and road grime
- BUILT TO LAST -- Heat-treated bearings, races and housings for optimal joint function, articulation and geometry
- PRECISE FIT -- Splines ensure precise fit of the axle into the mating hub
- EVERYTHING FOR THE REPAIR -- Comes with axle nut and inboard bolts (where required)

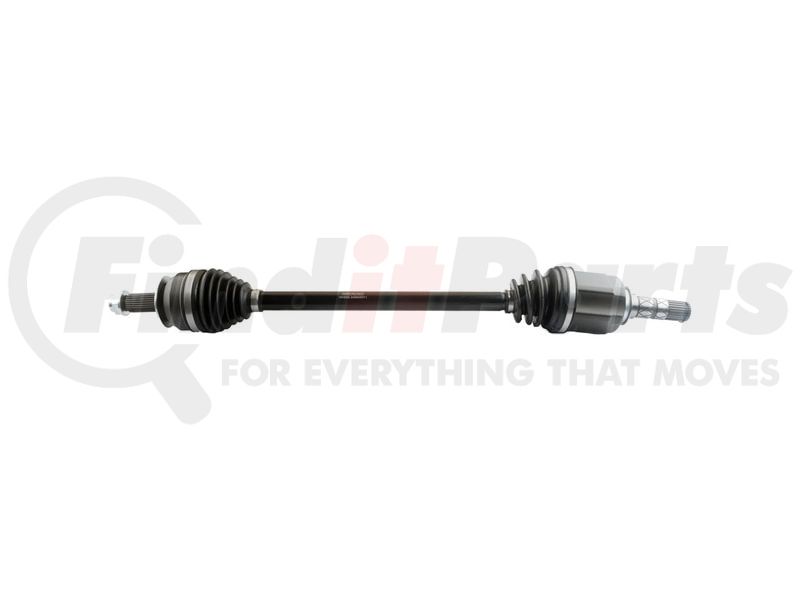

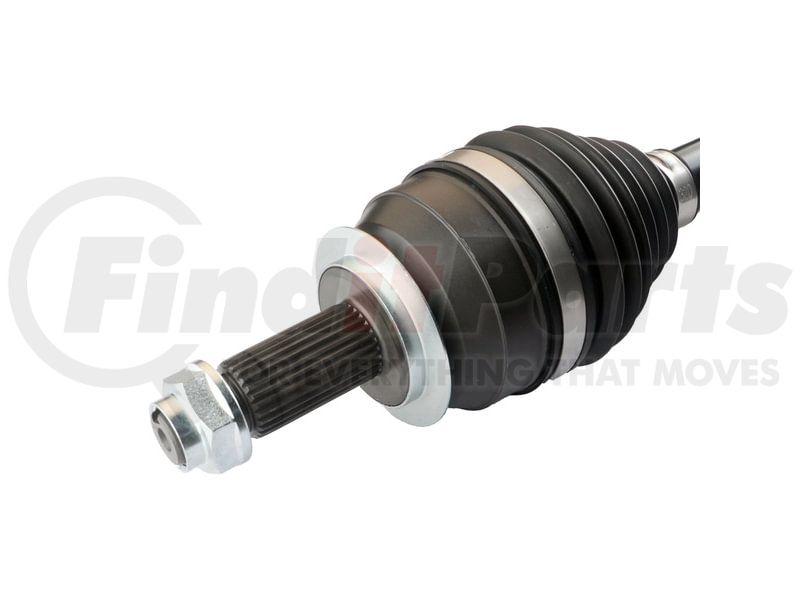

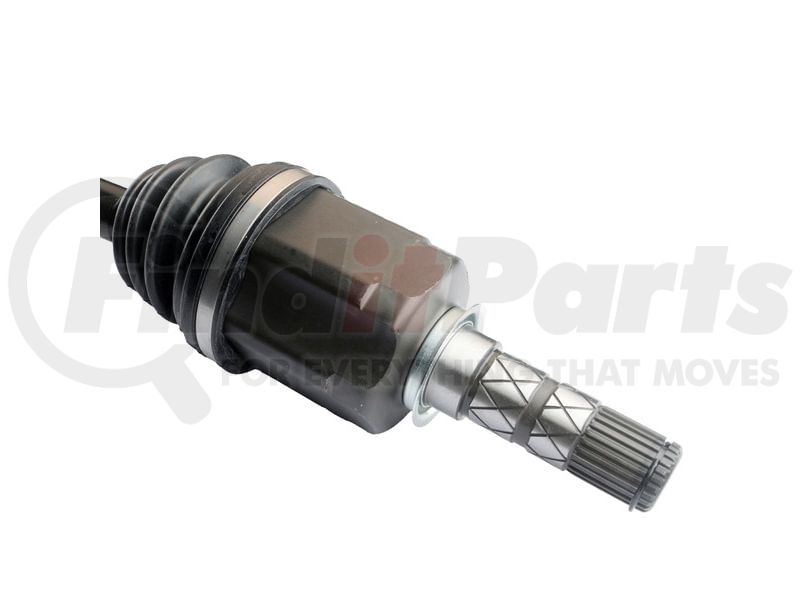

MOOG 16H003 CV Axle Assembly
MOOG 16H003 Specifications
Product Attributes
| Compressed Length | 31.26 IN |
| Inboard Spline Quantity | 25 |
| Outboard Spline Quantity | 27 |
| Axle Nut Included | Yes |
| Inboard Joint Type | Male |
| Outboard Joint Type | Conventional |
| ABS Tone Ring Included | No |
| Axle Nut Socket Size | 32 MM |
| Axle Nut Type | Hex |
| Axle Nut Thread Size | M22*1.5 |
| Inboard Boot Material | Neoprene |
| Outboard Boot Material | Thermoplastic |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708509990 |
| Harmonized Tariff Code (Schedule B) | 8708700050 |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00080066727615 |
MOOG 16H003 Part Interchanges
| Brand | Part Number |
|---|---|
| Subaru | 28321SC001 |
| CARDONE | 667381 |
MOOG 16H003 Fits Vehicles
- Subaru Impreza (2011-2014)
- Subaru Forester (2009-2013)
- Subaru WRX (2013-2014)
- Subaru XV Crosstrek (2013-2014)
MOOG 16H003 Customer Reviews
No reviews yet
Be the first to review this product!
MOOG 16H003 Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
