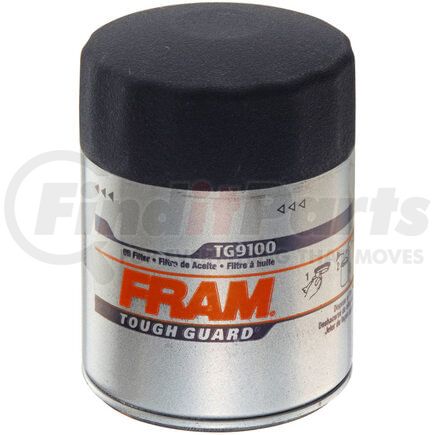

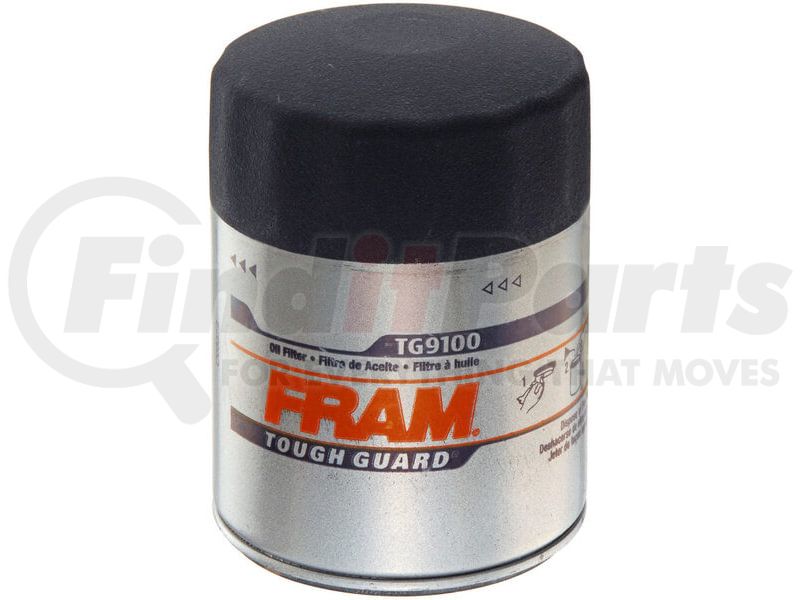

FRAM TG9100 Part Description
Manufacturer
Product Description
FRAM, TG9100, Oil Filter
Features & Benefits
- Proven protection for up to 15,000 miles (24,000 kilometers)
- Engineered for tough driving conditions, stop and go traffic, and hot and cold temperatures
- SureGrip® technology for easy install and removal
- Synthetic blend media provides 99% dirt holding capacity
- Silicone anti-drain back valve helps ensure safe engine start up
Spin-on Oil Filter
FRAM TG9100 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 5.125 IN |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.225 IN |
| Housing Color | Silver |
| Non Slip Grip | Yes |
| Torque Nut | No |
| Gasket Inside Diameter | 3.109 IN |
| Gasket Outside Diameter | 3.453 IN |
| Attachment Type | Spin-On |
| Burst Pressure | 230.000 PS |
| Bypass Relief Valve Setting | 9-15 PS |
| Gasket Type | Base |
| Grade | Premium |
| Grade Type | Premium |
| Inlet Type | Threaded |
| Inside Thread Diameter | 13/16-16 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| Outside Diameter | 3.660 IN |
| Replacable Filter | Yes |
| Reusable | No |
| Thread Size | Standard |
| Burst Pressure | 230.000 PS |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100560353 |
| UNSPSC | 15121501 |
FRAM TG9100 Part Interchanges
| Brand | Part Number |
|---|---|
| Ultra | XG9100 |
| Certified | CPH9100 |
| General Motors | 88917036, 97214983, 87214983 |
| Purolator BOSS | PBL35399 |
| PurolatorONE | PL35399 |
| STP | S9100ML, S9100XL, S9100 |
| Champ | LFP2999, LFP2999XL |
| Bosch | 3511 |
| Carquest Premium Filters | 84202 |
| Donaldson | P550518 |
| Casite Filters | CF524 |
| Hastings | LF524, LF524F |
| K&N | HP-3003, PS-3003 |
| Mighty Distributing System | M2999 |
| Pennzoil | PZ59, PZ-59 |
| Promotive | PH5399 |
| Group 7 | V5399 |
| ACDelco | PF2232 |
| Purolator | L35399 |
| Quaker State | L35299, QS9100 |
| Wix | 57202, 57202XP |
| Auto Extra | 61857202 |
| Baldwin | B1441 |
| LUBER-FINER | LFP2999 |
| Carquest | 84202, R84202, R84202MP |
| Service Champ | OF5399 |
| VIPER | 9100 |
| Amsoil | EAO52 |
| Shell - Archived | SH49 |
| Mann-Filter | ML 1035 |
| Factory Motor Parts | R7202 |
| Fleetguard | LF16102 |
| Warner | LFP2999 |
| Magneti Marelli | 1AMFL00012 |
| Isuzu | 8-97214-983-1 |
| Champion | 47202T, COS9100 |
| Parts Plus | LFP2999 |
| Mobil | MO5399 |
| STP Filters | S9100, S9100ML, S9100XL |
| Mobil 1 | M1-303, M1-303A |
| Installer Edge | AL9100, ML9100 |
| Mileguard | MO9100 |
| Pronto | PO-5399 |
| MicroGard | MGL57202, MGL9100 |
| Pentius | PLB9100 |
| Pit Stop | PSL46 |
| Silverline | 27202 |
| Performax | PO-59 |
| NAPA Gold Filters | 7202 |
| MotoMaster | MPH9100 |
| Driveworks | DW-5399 |
| Valvoline | VO-75 |
| Defense Filters | DL9100 |
| Parts Master | 67202, 67202BP, 67202X |
| Premium Guard | PG5399 |
| Champion Filters | 47202T, COS9100 |
| Purolator PureONE | PL35399 |
| ECOGARD | X5399 |
| Prime Guard Filters - Archived | POF5399 |
| NAPA Platinum Filters | 47202 |
| NAPA | 7202 |
| Warner Filters | LFP2999 |
| PureZone | 8-57202 |
| Purolator TECH | TL35399 |
| FVP | R7202 |
| Tough Guard | TG9100 |
| FRAM Tough Guard | TG9100 |
| FRAM Ultra Synthetic | XG9100 |
| FRAM Force | FF9100 |
| FRAM Titanium | FS9100 |
| FRAM Drive | FD9100 |
| FRAM Synthetic Endurance | FE9100 |
FRAM TG9100 Fits Vehicles
- Suzuki Aerio (2002)
- Chevrolet Silverado 3500 Classic (2007)
- GMC Sierra 2500 HD Classic (2007)
- Chevrolet Silverado 2500 HD Classic (2007)
- GMC Sierra 3500 Classic (2007)
- Chevrolet Express 4500 (2009-2016)
- GMC Savana 4500 (2009-2016)
- Chevrolet Silverado 3500 HD (2007-2019)
- GMC Sierra 3500 HD (2007-2019)
- GMC C5500 Topkick (2003-2009)
- GMC C4500 Topkick (2003-2009)
- GMC Savana 2500 (2006-2016)
- GMC Savana 3500 (2006-2016)
- Chevrolet Express 3500 (2006-2016)
- Chevrolet Express 2500 (2006-2016)
- Hummer H1 (2006)
- GMC Sierra 3500 (2001-2006)
- GMC Sierra 2500 HD (2001-2019)
- Chevrolet Silverado 3500 (2001-2006)
- Chevrolet Silverado 2500 HD (2001-2019)
FRAM TG9100 Cross References
We have 1 alternatives for the TG9100 by FRAM:
