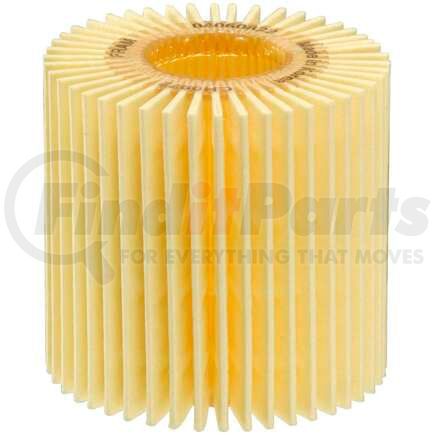

(888) 312-8812 Login SignupFRAM CH9972 Full-Flow Lube Oil Filter
MSRP: $10.95
$849
Save $2.46
Limited availability at this price!
In Stock
Get it by Tuesday, Jan 20
FRAM CH9972 Part Description
Manufacturer
Product Description
FRAM, CH9972, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
Cartridge Oil Filter
FRAM CH9972 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 2.640 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 1.100 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring (1) Inside Diameter | 1.080 IN |
| O-ring (1) Outside Diameter | 1.220 IN |
| O-ring (1) Thickness | 0.140 IN |
| O-ring Inside Diameter | 3.150 IN |
| O-ring Outside Diameter | 3.290 IN |
| O-ring Thickness | 0.014 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.760 in |
| Outer Diameter Top | 2.760 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 1.100 in |
| Torque Nut | No |
| Washable | No |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100046871 |
| UNSPSC | 15121501 |
FRAM CH9972 Cross References
| Brand | Part Number |
|---|---|
| A.L. Solutions U.S. | ALO-8147 |
| ACDelco | PF2259 |
| AFE | 44-LF036-MB, 44-LF036 |
| Amsoil | EA15K02 |
| Auto Extra | 61857047 |
| BALDWIN | P7398 |
| BECK/ARNLEY | 041-8190 |
| Bosch | 72236WS, 3972 |
| CARQUEST | 84047 |
| CHAMP | P967 |
| Carquest | R84047, R84047MP |
| Carquest Premium Filters | 84047 |
| Casite Filters | CF607 |
| Castrol | CAS9972 |
| Certified | CCH9972 |
| Champ | P967XL |
| Champion | 55047T, COC9972 |
| Champion Filters | 55047T, COC9972 |
| DEFENSE | DL9972 |
| DENSO | 150-3021, 150-3020, 150-3023 |
| Defense Filters | DL9972 |
| Driveworks | DW-5608 |
| ECOGARD | X5608 |
| ECOGUARD | X5608 |
| EXXON/MOBIL OIL | M1C251, M1C251A |
| FIRESTONE | P967 |
| FRAM | M1C-251A, M1C-251 |
| FRAM Core | COR9972ACC |
| FRAM Drive | FD9972 |
| FRAM Force | FF9972 |
| FRAM Pro | FP9972BP |
| FRAM Synthetic Endurance | FE9972 |
| FRAM Titanium | FS9972 |
| FRAM Tough Guard | TG9972 |
| FRAM Ultra Synthetic | XG9972 |
| FVP | G7047 |
| Factory Motor Parts | G7047 |
| Forecast | OF50 |
| GMB | 699-1001 |
| GROUP 7 | V5608 |
| HASTINGS | LF607 |
| Hastings | LF607F |
| Inter-Continental Gear & Brake | ALO-8147 |
| K&N | PS-7020, HP-7020 |
| LUBER-FINER | P967 |
| MAHLE | OX414D1ECO, OX 414D1 ECO, OX 414D1, OX414D1 |
| MIGHTY | M967 |
| MOBIL OIL | M1C251, M1C251A |
| Magneti Marelli | 1AMFL00021 |
| Mann-Filter | ML 1031 |
| MicroGard | MGL9972, MGL57047 |
| MicroGard Select | MSL57047 |
| Mighty Distributing System | M967 |
| Mileguard | MO9972 |
| Mobil | MO5608 |
| Mobil 1 | M1C-251, M1C-251A |
| MotoMaster | MCH9972 |
| Motorcraft | FL-2060 |
| NAPA | 7047 |
| NAPA Platinum Filters | 47047 |
| NAPA ProSelect Filters | 27047 |
| NAPA Silver Filters | 37047 |
| PUROLATOR | TL25608, PL25608, PBL25608 |
| Parts Master | 67047, 67047BP, 67047X |
| Parts Plus | PL25608, P967 |
| Pennzoil | HPZ-161, PZ-161, PZ161 |
| Pentius | PCB9972 |
| Performax | PO-161 |
| Pit Stop | PSL55 |
| Premium Guard | PG5608 |
| Prime Guard Filters - Archived | POF5608 |
| Promotive | PH5608 |
| Pronto | PO-5608 |
| PureZone | 8-57047 |
| Purolator | L25608 |
| Purolator BOSS | PBL25608 |
| Purolator PureONE | PL25608 |
| Purolator TECH | TL25608 |
| PurolatorONE | PL25608 |
| Quaker State | QS45516 |
| STP Filters | S9972, S9972ML, S9972XL |
| SUPERTECH | ST9972 |
| Service Champ | CF5608 |
| Silverline | 27047 |
| Super Tech Filters | ST9972 |
| Tough Guard | TG9972 |
| Toyota | 04152-31080, 04152-31090, 04152-YZZA1, 04152-31110 |
| Ultra | XG9972 |
| VIPER | 9972 |
| Valvoline | VO-84 |
| WIX FILTERS | 57047, 57047XP |
| Warner | WP967 |
| Warner Filters | WP967 |
| Wix | 57047, 57047XP |
FRAM CH9972 Fits Vehicles
- Suzuki Aerio (2002)
- Lexus TX550h+ (2024-2025)
- Lexus IS300 (2018-2024)
- Lexus RX350L (2018-2022)
- Lexus GS300 (2018-2019)
- Lexus LC500h (2018-2024)
- Lexus RX450hL (2018-2022)
- Lexus RC300 (2018-2024)
- Lexus NX300 (2018-2021)
- Lexus RC350 (2017-2024)
- Lexus LS500h (2018-2024)
- Lexus LS500 (2018-2019)
- Lexus IS350 (2017-2024)
- Lexus RC200t (2016-2017)
- Lexus GS350 (2016-2020)
- Toyota Tacoma (2016-2023)
- Toyota Venza (2009-2016)
- Lexus GS200t (2016-2017)
- Lexus IS200t (2016-2017)
- Lexus NX300h (2015-2021)
- Lexus NX200t (2015-2017)
- Lexus ES300h (2013-2018)
- Lexus RX450h (2010-2022)
- Lotus Evora (2010-2014, 2016-2017)
- Scion tC (2011-2016)
- Lexus IS250 (2008, 2013)
- Toyota Highlander (2008-2022)
- Toyota RAV4 (2006-2018)
- Toyota Sienna (2007-2020)
- Lexus RX350 (2007-2022)
- Toyota Camry (2007-2024)
- Lexus ES350 (2007-2024)
- Toyota Avalon (2005-2022)
