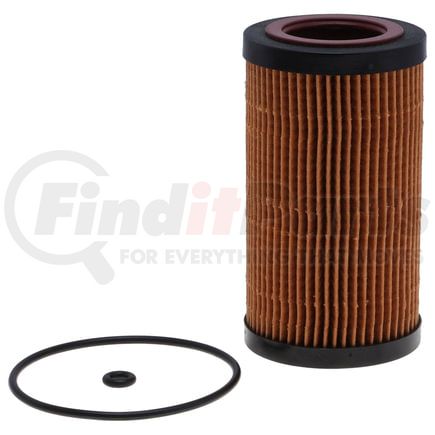

FRAM CH9999 Part Description
Manufacturer
Product Description
FRAM, CH9999, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
Full-Flow Lube Cartridge
FRAM CH9999 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 5.170 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Gasket Type | Cover |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 1.550 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring (1) Inside Diameter | 0.370 IN |
| O-ring (1) Outside Diameter | 0.510 IN |
| O-ring (1) Thickness | 0.140 IN |
| O-ring Inside Diameter | 3.400 IN |
| O-ring Outside Diameter | 3.540 IN |
| O-ring Thickness | 0.140 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.870 in |
| Outer Diameter Top | 2.870 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 1.550 in |
| Torque Nut | No |
| Washable | No |
| Washer Inside Diameter | 0.559 IN |
| Washer Outside Diameter | 0.779 IN |
| Washer Thickness | 0.082 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100050571 |
| UNSPSC | 15121501 |
FRAM CH9999 Cross References
| Brand | Part Number |
|---|---|
| A.L. Solutions U.S. | ALO-8148 |
| ACDelco | PF2261 |
| Auto Extra | 61857061 |
| BALDWIN | P7400 |
| BECK/ARNLEY | 041-8192 |
| Bosch | 72246WS, 3411 |
| CARQUEST | 84061 |
| CHAMP | P972 |
| Carquest | R84061 |
| Carquest Premium Filters | 84061 |
| Casite Filters | CF615 |
| Certified | CCH9999 |
| Champ | P972XL |
| Champion | 55061T, COC9999 |
| Champion Filters | 55061T, COC9999 |
| DEFENSE | DL9999 |
| DENSO | 150-3052 |
| Defense Filters | DL9999 |
| Driveworks | DW-5610 |
| ECOGARD | X5610 |
| ECOGUARD | X5610 |
| EXXON/MOBIL OIL | M1C454A |
| FIRESTONE | P972 |
| FRAM | M1C-454A |
| FRAM Drive | FD9999 |
| FRAM Force | FF9999 |
| FRAM Titanium | FS9999 |
| FRAM Tough Guard | TG9999 |
| FRAM Ultra Synthetic | XG9999 |
| FVP | G7061 |
| Factory Motor Parts | G7061 |
| GMB | 699-1015 |
| GROUP 7 | V5610 |
| HASTINGS | LF615 |
| Hastings | LF615F |
| Hyundai | 26320-3C100 |
| Inter-Continental Gear & Brake | ALO-8148 |
| Kia | 26320-3C100 |
| LUBER-FINER | P972 |
| MAHLE | OX773D, OX 773D |
| MOBIL OIL | M1C454A |
| Magneti Marelli | 1AMFL00017 |
| Mann-Filter | ML 1037 |
| MicroGard | MGL9999, MGL57061 |
| MicroGard Select | MSL57061 |
| Mighty Distributing System | M972 |
| Mobil 1 | M1C-454, M1C-454A |
| MotoMaster | MCH9999 |
| NAPA | 7061 |
| PUROLATOR | TL35610 |
| Parts Master | 67061 |
| Pennzoil | PZ164 |
| Pentius | PCB9999 |
| Performax | PO-164 |
| Pit Stop | PSL56 |
| Premium Guard | PG5610 |
| Prime Guard Filters - Archived | POF5610 |
| Promotive | PH5610 |
| Pronto | PO-5848 |
| PureZone | 8-57061 |
| Purolator | L35610, PL35610 |
| Purolator PureONE | PL35610 |
| Purolator TECH | TL35610 |
| PurolatorONE | PL35610 |
| Quaker State | QS45519 |
| STP | S9999 |
| STP Filters | S9999, S9999XL |
| Service Champ | CF5610 |
| Silverline | 27061 |
| VIPER | 9999 |
| Valvoline | VO-90 |
| WIX FILTERS | 57061 |
| Wix | 57061 |
FRAM CH9999 Fits Vehicles
- Suzuki Aerio (2002)
- Hyundai Santa Fe (2007-2009)
- Kia Sorento (2007-2009)
- Kia Amanti (2007-2009)
- Hyundai Veracruz (2007-2012)
- Hyundai Entourage (2007-2010)
- Hyundai Sonata (2006-2010)
- Kia Sedona (2006-2009)
- Hyundai Azera (2006-2009)
