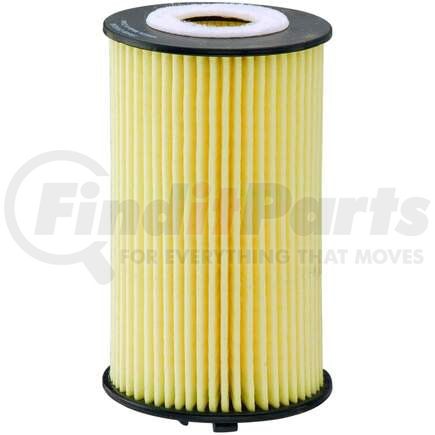

(888) 312-8812 Login SignupFRAM CH10246 Full-Flow Lube Oil Filter
MSRP: $16.90
$1299
Save $3.91
Limited availability at this price!
In Stock
Get it by Monday, Jan 5
FRAM CH10246 Part Description
Manufacturer
Product Description
FRAM, CH10246, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
Cartridge Oil Filter
FRAM CH10246 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 4.134 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 1.063 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 2.461 IN |
| O-ring Outside Diameter | 2.600 IN |
| O-ring Thickness | 0.138 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.264 in |
| Outer Diameter Top | 2.264 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 0.365 in |
| Torque Nut | No |
| Washable | No |
Additional Information
| Country of Origin (Primary) | AR |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100539014 |
| UNSPSC | 15121501 |
FRAM CH10246 Part Interchanges
| Brand | Part Number |
|---|---|
| Champ | P981 |
| Bosch | 72260WS |
| Casite Filters | CF643 |
| Hastings | LF643, LF643F |
| K&N | PS-7027, HP_7027 |
| Pennzoil | PZ171 |
| Promotive | PH5839 |
| Group 7 | V5839 |
| ACDelco | PF101G, PF2257G, PF2264G |
| Purolator | L15839 |
| Quaker State | QS171 |
| Wix | 57674, WL10331 |
| LUBER-FINER | P981 |
| Carquest | 84674, R84674 |
| Service Champ | CF5839 |
| Mann-Filter | HU612/2X, ML1053 |
| Certified | CCH10246 |
| General Motors | 55576499, 55588497, 55594651, 55594652, 93185674 |
| Hengst | E614HD256 |
| Warner | WP981 |
| Opel | 5650359 |
| Champion | 55674T, COC10246 |
| Mobil 1 | M1C-257, M1C-257A |
| Pronto | PO-5839 |
| MicroGard | MGL10246, MGL57674 |
| Performax | PO-171 |
| NAPA ProSelect Filters | 27674 |
| MotoMaster | MCH10246 |
| Defense Filters | DL10246 |
| STP | S10246 |
| Parts Master | 67674, 67674X |
| Premium Guard | PG5839 |
| MAHLE | OX254D4ECO, OX401D |
| NAPA | 7674 |
| Purolator BOSS | PBL15839 |
| PurolatorONE | VO-98, PL15839 |
| FVP | G7674 |
| Carquest Premium Filters | 84674 |
| Mighty Distributing System | M981 |
| Mahle | OX254D4ECO, OX401D |
| Factory Motor Parts | G7674 |
| STP Filters | S10246, S10246ML, S10246XL |
| NAPA Gold Filters | 7674 |
| Valvoline | VO-98 |
| Champion Filters | 55674T, COC10246 |
| ECOGARD | X5839 |
| Prime Guard Filters - Archived | POF5839 |
| NAPA Platinum Filters | 7674 |
| Warner Filters | WP981 |
| PureZone | 8-57674 |
| Purolator TECH | TL15839 |
| FRAM Tough Guard | TG10246 |
| FRAM Ultra Synthetic | XG10246 |
| FRAM Core | COR10246ACC |
| FRAM Force | FF10246 |
| FRAM Titanium | FS10246 |
| FRAM Drive | FD10246 |
| FRAM Pro | FP10246, FP10246BP |
| FRAM Synthetic Endurance | FE10246 |
| MicroGard Select | MSL57674 |
FRAM CH10246 Fits Vehicles
- Suzuki Aerio (2002)
- GMC Terrain (2018-2019)
- Pontiac G3 (2009-2010)
- Chevrolet Equinox (2018-2019)
- Buick Cascada (2016-2019)
- Chevrolet Colorado (2017-2022)
- Chevrolet Malibu (2016-2019)
- GMC Canyon (2017-2022)
- Chevrolet Cruze Limited (2016)
- Buick Encore (2013-2021)
- Pontiac G3 Wave (2009)
- Chevrolet Trax (2013-2021)
- Chevrolet Sonic (2012-2020)
- Chevrolet Cruze (2011-2015, 2017-2019)
- Chevrolet Aveo (2009-2011)
- Chevrolet Aveo5 (2009-2011)
- Suzuki Swift+ (2009)
- Saturn Astra (2008-2009)
FRAM CH10246 Cross References
We have 10 alternatives for the CH10246 by FRAM:
