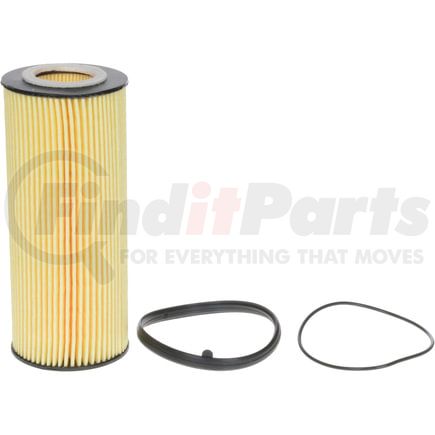

FRAM CH10160 - Cartridge Oil Filter
$849
MSRP: $17.28
Save: $8.79
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
FRAM part description
Product Description
FRAM, CH10160, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
Cartridge Oil Filter
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 6.141 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Gasket Inside Diameter | 2.874 IN |
| Gasket Outside Diameter | 3.149 IN |
| Gasket Thickness | 0.185 |
| Gasket Type | Cover |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 1.299 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 3.090 IN |
| O-ring Outside Diameter | 3.129 IN |
| O-ring Thickness | 0.039 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.559 in |
| Outer Diameter Top | 2.559 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 1.299 in |
| Torque Nut | No |
| Washable | No |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100533043 |
| UNSPSC | 15121501 |
Part Interchanges
- Beck/Arnley 041-8189
- Champ P966
- Bosch 1457429268
- Hastings LF629
- K&N HP-7015
- Pennzoil PZ-191
- Pro-Tec 715
- Purolator L45598
- Wix 57204
- Baldwin B7414
- LUBER-FINER P966
- Original Engine Management OF57
- Carquest 84204
- Mann-Filter HU7029Z
- Hengst E32HD125
- Warner WP966
- Audi 06E 115 562
- Porsche 9581072220
- Volkswagen 06E 115 466
- Champion COC10160
- Parts Plus P966
- Installer Edge AL10160
- Knecht OX381D
- Pronto PO5598
- Pentius PCB10160
- Purflux L390
- Ryco R2632P
- Performax PO-191
- TVI V5598
- NAPA Gold Filters 7204
- STP S10160
- Parts Master 67204
- Premium Guard PG5598
- ECOGARD X5598
- MAHLE OX381D
- PUREPRO PL5598
- NAPA 7204
- FVP G7204
- Mobil P966
- Bosch 72255WS
- Bosch P9268
- K&N PS-7015
- Pennzoil PZ191
- Pennzoil PZ19BP
- Baldwin P7414
- Mann-Filter HU722Z
- Hengst E32HD184
- Audi 06E 115 562A
- Porsche 95810722200
- Volkswagen 06E 115 562
- Volkswagen 06E 115 562A
- Volkswagen 06E 115 562C
- Volkswagen 06E 115 562E
- Volkswagen 958 107 222 00
- MAHLE OX381DECO
- Carquest Premium Filters 84204
- Carquest Standard Filters R84204
- Mighty Distributing System M966
- Service Champ CF5598
- Mahle OX381D
- A.L. Solutions U.S. ALO-8166
- Factory Motor Parts G7204
- STP Filters S10160
- Inter-Continental Gear & Brake ALO-8166
- MicroGard MGL57204
- Service Pro M5598
- Valvoline VO-92
- Champion Filters COC10160
- Prime Guard Filters - Archived POF5598
- Warner Filters WP966
- GUD Filters M75
- FRAM Drive FD10160
FRAM CH10160 Cross Reference
We have 10 alternatives for the CH10160 by FRAM:
Fits Vehicles
- Audi A4 (2006-2008)
- Audi A8 Quattro (2013-2015)
- Audi SQ5 (2014-2017)
- Audi A7 Quattro (2012-2015)
- Audi Q7 (2011-2015)
- Porsche Panamera (2012-2014)
- Volkswagen Touareg (2011-2014)
- Porsche Cayenne (2011-2015, 2017-2018)
- Audi S5 (2010-2017)
- Audi S4 (2010-2016)
- Audi Q5 (2009-2017)
- Audi A5 Quattro (2008-2010)
- Audi A6 (2006-2011)
- Audi A6 Quattro (2005-2015)
- Audi A4 Quattro (2005-2009)
