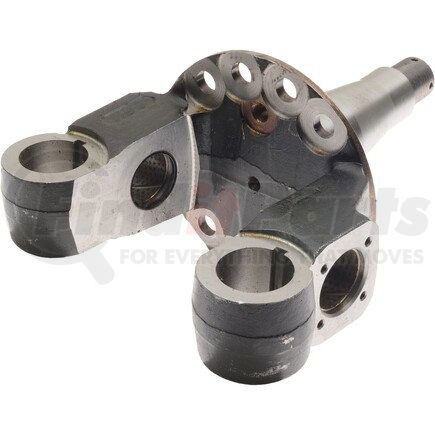

Dana 817246 - Knuckle LH
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
DANA part description
Specifications
| Brand | Spicer |
| Side | Left Hand |
| Series | EFA20F4, EFA24T2, EFA24T5 |
| Length (Boss To End) | 8.040-8.100 |
| Length (Boss To Locknut) | 6.450 |
| Spindle Large Diameter | 4.373-4.377 |
| Spindle Small Diameter | 2.2485-2.2495 |
| Thread Type Wheel End | 1.750-12 UN-2A |
| Number Of Brake Holes | 10 |
| Brake Hole Diameter | 0.651-0.666 |
| Sensor Hole Diameter | 0.875 |
| Stop Bolt Hole | .3125-18 UNC-2B THD |
| Pin Bore Diameter | 1.500 |
| VMRS | 011001004 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 24.18 LB |
| Country of Origin | Brazil |
Features & Benefits
- Genuine Spicer Product
- Meets or exceeds OE standards.
Product Attributes
| Series | EFA20F4, EFA24T2, EFA24T5 |
| Side | Left Hand |
| Length (Boss To End) | 8.040-8.100 IN |
| Length (Boss To Locknut) | 6.450 IN |
| Spindle Large Diameter | 4.373-4.377 IN |
| Spindle Small Diameter | 2.2485-2.2495 IN |
| Thread Type Wheel End | 1.750-12 UN-2A |
| Sensor Hole Diameter | 0.875 |
| Stop Bolt Hole | .3125-18 UNC-2B THD |
| Caliper Mounting Hole Diameter | 0.651-0.666 |
| Caliper Mounting Hole Quantity | 10 |
| King Pin Bore Diameter | 1.500 |
Additional Information
| Country of Origin (Primary) | BR |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913200251 |
| VMRS Code | 011001004 |
Part Interchanges
- Daimler Truck North America ETN 817246
- Volvo SP 817246
- International Harvester (IHC) ETN0817246
- International Harvester (IHC) ZBP0817246
- Navistar DS817246
- Navistar ETN0813776
- Navistar ETN0817246
- Navistar ZBP0817246
- Paccar Parts 817246ETN
- Mack 2719-817246
- Freightliner ETN 817246
- Freightliner ETN817246
