PETERSON LIGHTING part description

507 Par 36, Rubber Tractor/Implement Light

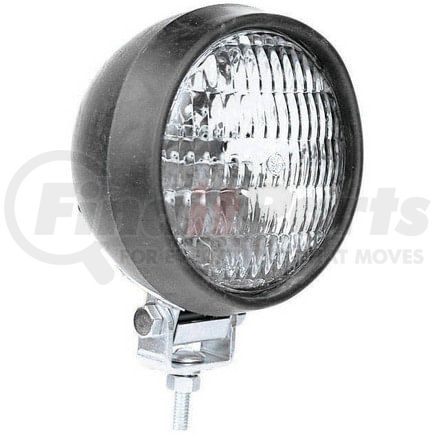

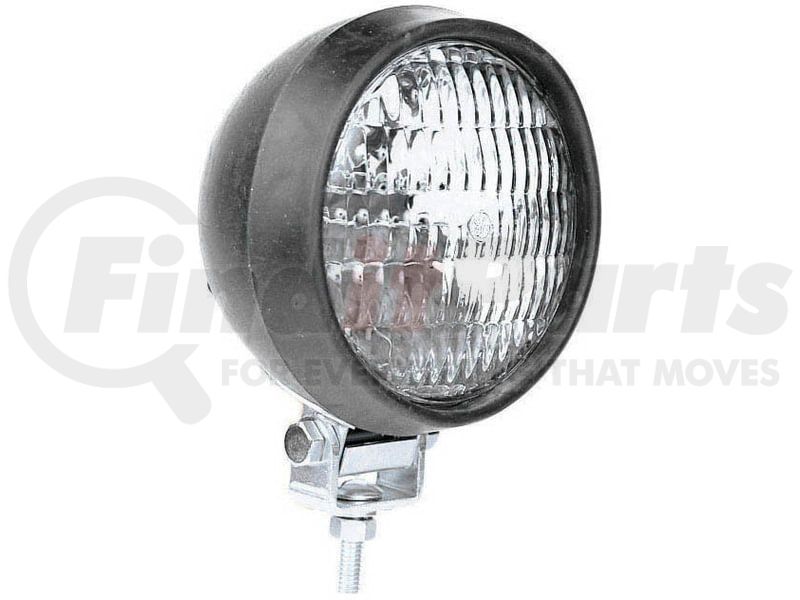

Peterson Lighting Par 36 Rubber Tractor/Implement Light

The Peterson Lighting Par 36 rubber tractor/implement light is designed to make your daily agriculture tasks more convenient and efficient. It is made of high-quality materials, so you can rest easy that it will perform well even when used under harsh weather conditions.

Features & Benefits

  • A trapezoid version light with a rubber molded housing that effectively absorbs shock and vibration
  • Comes with an adjustable zinc-plated bracket and universal 5/16” mounting stud for hassle-free installation
  • Already includes a 10-inch lead wire that exits through the back of the housing
  • Designed to accept 4411 (trap. 12V), 4511 (trap. 6V), H7610 (halogen trap.), or H7614 (halogen flood) bulb
  • Built to deliver excellent performance and functionality

Product Description

INCANDESCENT TRACTOR/WORKLIGHT, PAR 36, RUBBER, TRAPEZOID, 4.72"

Features & Benefits

  • Available in retail-friendly Viz Pack.
  • LED version available.
  • PVC molded housing cushions lamp from shock and vibration.
  • Replaceable, flush-mount, par 36 sealed beam.
  • Available in both trapezoid and flood beam patterns.
  • 10" lead wire exits through back of housing, grounds through mounting stud.
  • 507S includes push-button on/off switch on back of housing and .180 bullet terminal on lead.
  • Universal 5/16" mounting stud and adjustable zinc-plated bracket allow mounting in any position.
  • Accepts standard 4411 (trap. 12V), 4511 (trap. 6V), H7610 (halogen trap.) or H7614 (halogen flood) bulb.
  • See 907 LED version on Peterson Master Catalog page 127.

507LU: housing only (poly pack - std qty 12)

Product Attributes

Mounting Type stud
Beam Pattern trapezoidal
Bulb Technology incandescent
Bulb/diode Count 1
California Proposition 65 Required Y
Coil Cord N
Container Type bulk pack

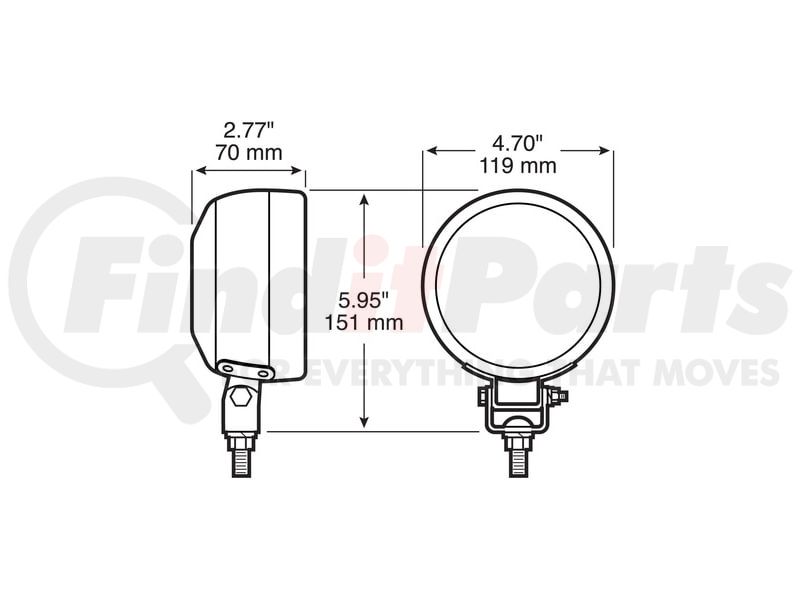

Diameter 4.7 IN
Exterior Use Y
Family PM
Filament Quantity 1
Height 5.95 in
Integral Switch N
Length 4.7 in
Lens Color clear
Light Color white
Marine Use N
Removable Lens Sealed beam
Replaceable Bulb Y
Shape round
Termination stripped wire
Voltage 12 Volts
Width 2.77 in

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8512202000
UPC 00044464902630
VMRS Code 034006031

PETERSON LIGHTING M507 Cross Reference

We have 7 alternatives for the M507 by PETERSON LIGHTING:

Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
