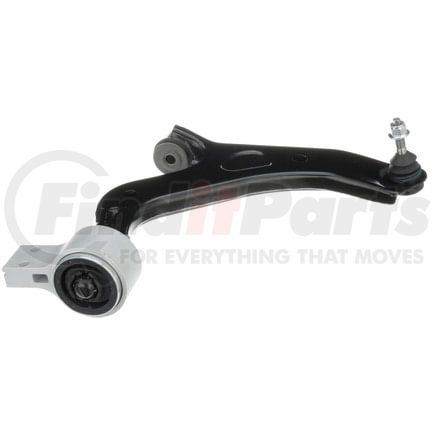

Delphi TC4026 - Control Arm and Ball Joint Assembly
$430
5 day lead time
limited availability at this price!
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Pre-Greased | Yes |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Ball Joint Included | Yes |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Mounting Hole Quantity | 2 |
| Boot Material | Chloroprene Rubber (CR) |
| Adjustable | No |
| Locking Nut Included | Yes |
| Greasable | No |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 93.50 MM |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 12.80 MM |
| Dust Boot Material | Chloroprene Rubber (CR) |
| 9532 | 328.50 MM |
| Bushing Inside Diameter | 14.30 MM |
| Bushing Length | 60.00 MM |
| Position(s) | Front Left |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 3.681 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.504 IN |
| 9532 | 12.933 IN |
| Bushing Inside Diameter | 0.563 IN |
| Bushing Length | 2.362 IN |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604393345 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- Ford Flex (2009)
- Ford Taurus X (2008-2009)
- Ford Freestyle (2007)
