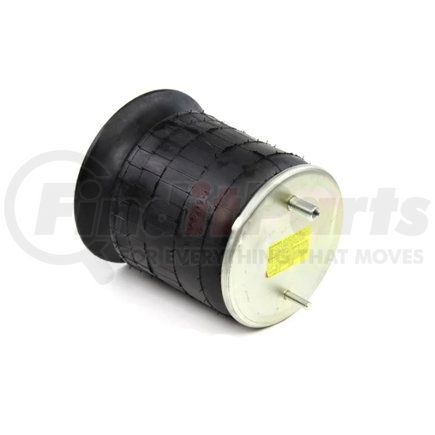

FIRESTONE W013589295 Part Description
Manufacturer

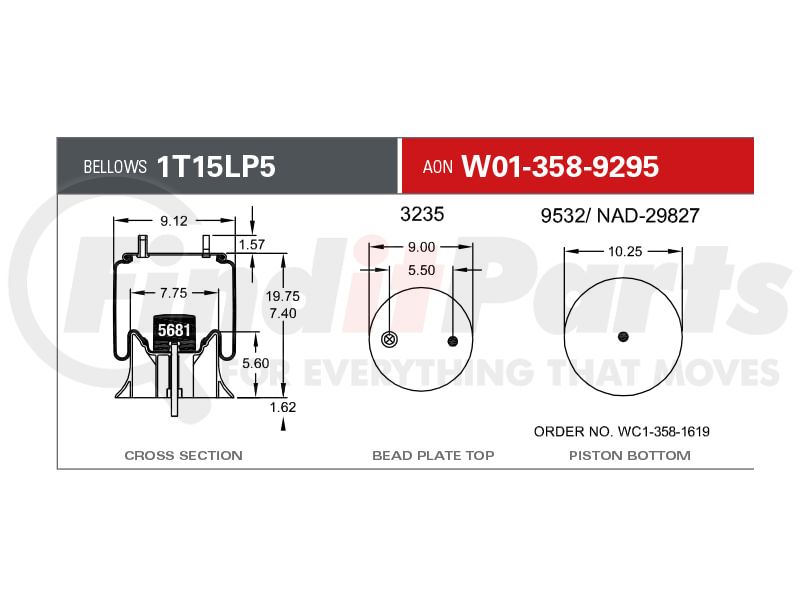

TECHNICAL DATA -
| Order Number: | W01-358-9295 |
| Bellows #: | 1T15LP-5 |
| Assembly Weight: | 13.2 lbs |
| Design Height: | 12-14 inches |
| Minimum Jounce Height: | 7.4 inches |
| Maximum Rebound Height: | 19.57 inches |
| Loading Capacity at 20 psig: | 1,220 lbsf |
| Loading Capacity at 60 psig: | 3,660 lbsf |
| Loading Capacity at 90 psig: | 5,490 lbsf |
| Natural Frequency: | Hz |
| Maximum Diameter: | 10.7 inches |
| Material Type: | Natural Rubber |
| Operating Temperature: | 57Cº to-54Cº |
| Remarks: LP-5 ON M-6 LT. WT. FRP PISTON | |
| TR: B-8968 |
FIRESTONE W013589295 Cross References
We have 28 alternatives for the W013589295 by FIRESTONE:
- TORQUE PARTS TR9295
- FIRESTONE 1T15LP5
- GOODYEAR 1R11-166
- GOODYEAR 1R11166
- GOODYEAR 1R11913
- TRIANGLE 8417
- SAF-HOLLAND 90557121
- CONTITECH 99K15P417
- CONTITECH 99515P417
- WATSON & CHALIN AS0171
- W016759295
- 566223048
- 6378
- FIW013589295
- CONTITECH AS9295
- TRIANGLE SUSPENSION AS-8417
- WORLD AMERICAN WA01-9295C
- MERITOR FS9295
- FIRESTONE 1T15AE-5
- FIRESTONE 1T15LP-5
- GOODYEAR BELLOWS 566-22-3-048
- GOODYEAR PART 1R11-166
- GOODYEAR PART 1R11-913
- HOLLAND (NEWAY) 905-57-121
- PISTON 9532
- TOP PLATE 3235
- TRIANGLE BELLOWS 6378
- TRIANGLE PART 8417
FIRESTONE W013589295 Customer Reviews
No reviews yet
Be the first to review this product!
FIRESTONE W013589295 Manufacturer Information
Headquartered in Nashville, Tennessee, Firestone Industrial Products® is a proud manufacturer of air spring and other anti-vibration solutions to heavy duty trucks, trailers, commercial vehicles, rail cars, and industrial equipment. It has come a long way since it revolutionized transportation with the introduction of the Airide™ Air Spring in 1938. Today, Firestone is more than just an air spring manufacturer—it’s a global leader and a local partner that sees solutions where others see obstacles. Both OEMs and everyday consumers trust this brand for their air suspension needs because of its unwavering commitment to quality and reliability. All Firestone parts are engineered and tested in ISO-certified facilities to ensure they meet the strictest standards and customer specifications.
