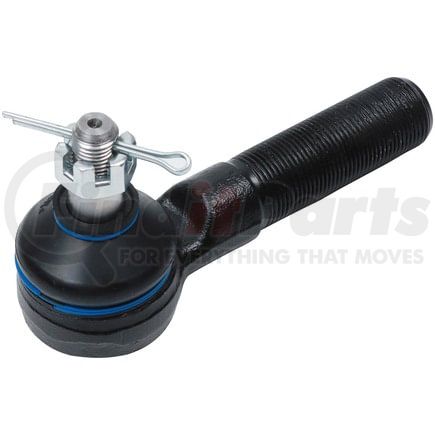

Name: Delphi TA3608 Tie Rod End
SKU: ta3608
Price: 21.49 USD
Availability: InStock

DELPHI part description

Tie Rod End

Product Description

Tie Rod End

Product Attributes

Length	132.40 MM
Color	Black
Shank Length	14.10 MM
End 1 Gender	Male
End 2 Gender	Male
Stud Length	14.10 MM
Finish	Painted
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	43 MM
Type	Straight
Mounting Hardware Included	Yes
Height	71.40 MM
Grade Type	Standard
Housing Material	Steel
Adjustable	No
Greasable	No
Boot Color	Black
Weight	0.54 lb
Cone Outside Diameter	14.10 MM
Bearing Material	Plastic
End 1 Thread Direction	Counterclockwise (Left)
End 2 Thread Direction	Clockwise (Right)
Grade	Premium
Stud Type	Threaded
End 2 Thread Pitch	0.45 MM
End 1 Thread Pitch	1.5 MM
Length Stud Center to End	111.00 MM
Dust Boot Material	Chloroprene Rubber (CR)
Tie Rod Material	Steel
End 2 Threads Per Inch	20
End 1 Thread Diameter	22.00 MM
Position(s)	Front Left Outer
Shank Length	0.555 IN
Stud Length	0.555 IN
662	0.555 IN
Length Stud Center to End	4.370 IN
End 1 Thread Diameter	0.866 IN

Additional Information

Country of Origin (Primary)	TR
Harmonized Tariff Code (Schedule B)	8708948000
Harmonized Tariff Code (HTS)	8708947550
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604392140
VMRS Code	015004020
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Jeep Wrangler (1987-1990)
