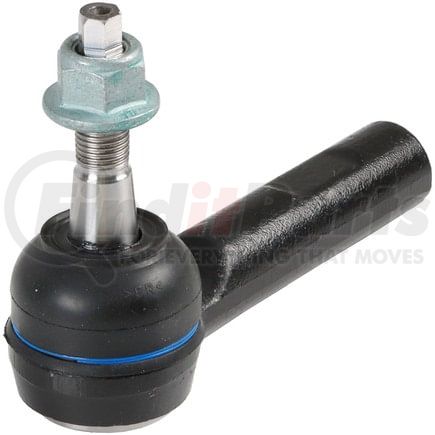

Name: Delphi TA3569 Tie Rod End
SKU: ta3569
Price: 19.99 USD
Availability: InStock

DELPHI part description

Tie Rod End

Product Description

Tie Rod End

Product Attributes

Length	127.00 MM
Shank Length	19.00 MM
End 1 Gender	Male
End 2 Gender	Female
Stud Length	19.00 MM
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	16.00 MM
Grade Type	Standard
Housing Material	Steel
Tube Diameter	23.00 MM
Adjustable	No
Greasable	No
Weight	2.08 lb
Cone Outside Diameter	19.00 MM
Bearing Material	Plastic
End 1 Thread Direction	Counterclockwise (Left)
End 2 Thread Direction	Counterclockwise (Left)
Grade	Premium
Stud Type	Threaded
Head Drive Type	Hex
End 2 Thread Pitch	1.5 MM
End 1 Thread Pitch	1.5 MM
Length Stud Center to End	91.60 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	18.00 MM
Position(s)	Outer
Shank Length	0.748 IN
Stud Length	0.748 IN
End 2 Thread Diameter	0.630 IN
36	0.910 IN
662	0.748 IN
Length Stud Center to End	3.606 IN
End 1 Thread Diameter	0.709 IN

Additional Information

Country of Origin (Primary)	TR
Harmonized Tariff Code (Schedule B)	8708948000
Harmonized Tariff Code (HTS)	8708947550
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604390610
VMRS Code	015004045
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Ram 1500 (2019-2022)
