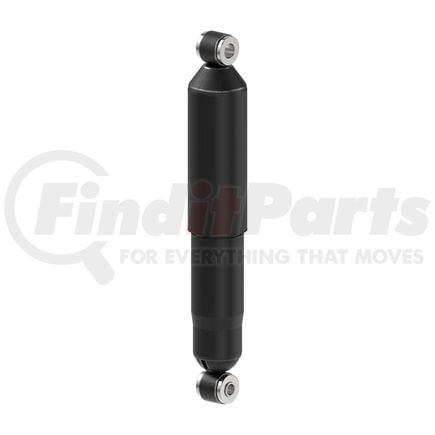

Monroe 34525 - Gas-Magnum Suspension Shock Absorber
$4549
MSRP: $92.85
Save: $47.36
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
MONROE part description
Product Description
Gas-Magnum Suspension Shock Absorber
Features & Benefits
- DESIGNED FOR TRUCKS AND VANS -- Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
- BUILT TO LAST -- Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- LONGER SERVICE LIFE -- Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
Product Attributes
9791 | LS92 |
9789 | S5 |
Dust Shield Included | Yes |
9783 | No |
9908 | No |
9792 | No |
Part Description | Shock Absorber |
Compressed Length | 13.625 IN |
Dust Shield Material | Metal |
Extended Length | 20.75 in |
Gas Charged | Yes |
Lower Mount Type | Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 1.11/16" Sleeve OAL |
Parts Pack(s) | P01167 |
Travel Length | 7.125 in |
Upper Mount Type | Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch |
Compressed Length | 346.1 MM |
Extended Length | 527.1 MM |
Travel Length | 181 MM |
Shock Absorber Rod End Measuring Point | Base of Stem |
Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
MSDS Sheet Number | 1164 |
Country of Origin (Primary) | US |
Canadian Harmonizing Tariff Code | 8708803000 |
Harmonized Tariff Code (Schedule B) | 8708801600 |
Harmonized Tariff Code (HTS) | 8708801600 |
UPC | 00048598062024 |
VMRS Code | 016008003 |
UNSPSC | 25172011 |
Part Interchanges
- Ford 1C3Z18125LA
- Ford 5C3Z18124AA
- Ford 5C3Z18124BA
- Ford 5C3Z18124CA
- Ford 5C3Z18124FA
- Ford 5C3Z18124KA
- Ford 5C3Z18124LA
- Ford 5C3Z18124MA
- Ford 5C3Z18124NA
- Ford 5C3Z18124NB
- Ford 5C3Z18124PA
- Ford 5C3Z18124RA
- Ford 5C3Z18124SA
- Ford 5C3Z18124TA
- Ford 5C3Z18124VA
- Ford 5C3Z18125A
- Ford 5C3Z18125B
- Ford 5C3Z18125C
- Ford 5C3Z18125CA
- Ford 5C3Z18125CB
- Ford 5C3Z18125CC
- Ford 5C3Z18125CF
- Ford 5C3Z18125CH
- Ford 5C3Z18125CJ
- Ford 5C3Z18125D
- Ford 5C3Z18125E
- Ford 5C3Z18125F
- Ford 5C3Z18125G
- Ford 5C3Z18125JA
- Ford 5C3Z18125JB
- Ford 5C3Z18125JC
- Ford 5C3Z18125JD
- Ford 5C3Z18125JE
- Ford 5C3Z18125KA
- Ford 5C3Z18125LA
- Ford 5C3Z18125LB
- Ford 5C3Z18125LC
- Ford 5C3Z18125LD
- Ford 5C3Z18125LE
- Ford 5C3Z18125LF
- Ford 5C3Z18125MF
- Ford 6C3Z18124AGA
- Ford 6C3Z18124PBA
- Ford 6C3Z18124PHA
- Ford 6C3Z18125A
- Ford 6C3Z18125B
- Ford 6C3Z18125CEA
- Ford 6C3Z18125KBA
- Ford 6C3Z18125KHA
- Ford 6C3Z18125MBG
- Ford 6C3Z18125MHA
- Ford 7C3Z18124AE
- Ford 7C3Z18124AF
- Ford 7C3Z18124AGA
- Ford 7C3Z18124AH
- Ford 7C3Z18124AKA
- Ford 7C3Z18124APA
- Ford 7C3Z18124ARA
- Ford 7C3Z18124EA
- Ford 7C3Z18124NBA
- Ford 7C3Z18124NCA
- Ford 7C3Z18124NDA
- Ford 7C3Z18124NEA
- Ford 7C3Z18124NGA
- Ford 7C3Z18124P
- Ford 7C3Z18124PBA
- Ford 7C3Z18124PCA
- Ford 7C3Z18124PDA
- Ford 7C3Z18124PGA
- Ford 7C3Z18125CCA
- Ford 7C3Z18125CEA
- Ford 7C3Z18125CLA
- Ford 7C3Z18125CUA
- Ford 7C3Z18125CVA
- Ford 7C3Z18125CXA
- Ford 7C3Z18125JBA
- Ford 7C3Z18125JCA
- Ford 7C3Z18125JDA
- Ford 7C3Z18125JEA
- Ford 7C3Z18125K
- Ford 7C3Z18125KBA
- Ford 7C3Z18125KCA
- Ford 7C3Z18125KDA
- Ford 7C3Z18125LBA
- Ford 7C3Z18125LCA
- Ford 7C3Z18125LDA
- Ford 7C3Z18125LEA
- Ford 7C3Z18125LGA
- Ford 7C3Z18125M
- Ford 7C3Z18125MBA
- Ford 7C3Z18125MCA
- Ford 7C3Z18125MDA
- Ford 7C3Z18125MGA
- Ford 8C3Z18124NK
- Ford 8C3Z18124PK
- Ford 8C3Z18125LK
- Ford 8C3Z18125MK
- Ford 9C3Z18124A
- Ford 9C3Z18124B
- Ford 9C3Z18124PDA
- Ford 9C3Z18125A
- Ford 9C3Z18125B
- Ford 9CZ18124A
- Ford 9CZ18124B
- Ford BC3Z18124A
- Ford BC3Z18124AA
- Ford BC3Z18124AB
- Ford BC3Z18124B
- Ford BC3Z18124C
- Ford BC3Z18124D
- Ford BC3Z18124E
- Ford BC3Z18124F
- Ford BC3Z18124G
- Ford BC3Z18124H
- Ford BC3Z18124K
- Ford BC3Z18124L
- Ford BC3Z18124M
- Ford BC3Z18124N
- Ford BC3Z18124P
- Ford BC3Z18124Q
- Ford BC3Z18124R
- Ford BC3Z18124S
- Ford BC3Z18124T
- Ford BC3Z18124U
- Ford BC3Z18124V
- Ford BC3Z18124W
- Ford BC3Z18124X
- Ford BC3Z18124Y
- Ford BC3Z18124Z
- Ford BC3Z18125A
- Ford BC3Z18125AA
- Ford BC3Z18125AB
- Ford BC3Z18125AC
- Ford BC3Z18125AE
- Ford BC3Z18125AF
- Ford BC3Z18125AG
- Ford BC3Z18125AH
- Ford BC3Z18125AJ
- Ford BC3Z18125AK
- Ford BC3Z18125AL
- Ford BC3Z18125AM
- Ford BC3Z18125AN
- Ford BC3Z18125B
- Ford BC3Z18125C
- Ford BC3Z18125D
- Ford BC3Z18125E
- Ford BC3Z18125F
- Ford BC3Z18125J
- Ford BC3Z18125L
- Ford BC3Z18125M
- Ford BC3Z18125N
- Ford BC3Z18125P
- Ford BC3Z18125Q
- Ford BC3Z18125R
- Ford BC3Z18125S
- Ford BC3Z18125U
- Ford BC3Z18125V
- Ford BC3Z18125W
- Ford BC3Z18125Y
- Ford F81Z18124AK
- Ford F81Z18124AL
- Ford F8AZ18125JA
- Ford HC3Z18124A
- Ford HC3Z18124B
- Ford HC3Z18124C
- Ford HC3Z18124D
- Ford HC3Z18124E
- Ford HC3Z18124F
- Ford HC3Z18124G
- Ford HC3Z18124H
- Ford HC3Z18124K
- Ford HC3Z18124L
- Ford HC3Z18124M
- Ford HC3Z18124N
- Ford HC3Z18124P
- Ford HC3Z18124R
- Ford HC3Z18124S
- Ford HC3Z18124T
- Ford HC3Z18124U
- Ford HC3Z18124V
- Ford HC3Z18125A
- Ford HC3Z18125AA
- Ford HC3Z18125AB
- Ford HC3Z18125AC
- Ford HC3Z18125B
- Ford HC3Z18125C
- Ford HC3Z18125D
- Ford HC3Z18125EA
- Ford HC3Z18125G
- Ford HC3Z18125H
- Ford HC3Z18125S
- Ford HC3Z18125T
- Ford HC3Z18125U
- Ford HC3Z18125V
- Ford HC3Z18125W
- Ford HC3Z18125Y
- Ford HC3Z18125Z
- Ford LC3Z18124A
- Ford LC3Z18124N
- Ford LC3Z18124Q
- Ford LC3Z18125G
- Ford LC3Z18125S
- Ford LC3Z18125U
- Max Control 77951
- OEM HC3Z18124V
- Gabriel 77951
- OEM 8C3Z18124PK
- OEM 7C3Z18124NBA
- Motorcraft ASH1133
- Pro Comp Suspension 321553
- OEM BC3Z18124S
- OEM HC3Z18124M
- Motorcraft ASH434
- OEM BC3Z18124Y
- OEM 7C3Z18124NEA
- Sachs 316638
- OEM 7C3Z18124PCA
- Motorcraft ASH25761
- KYB 554347
- Motorcraft ASH25759
- AutoZone MS33-31011B
- OEM BC3Z18124Z
- OEM BC3Z18124U
- OEM 7C3Z18124ARA
- OEM BC3Z18124AB
- OEM BC3Z18124N
- OEM HC3Z18124L
- Motorcraft ASH25758
- Bilstein 24186674
- OEM 9CZ18124B
- OEM 7C3Z18124PDA
- OEM HC3Z18124K
- OEM BC3Z18124T
- OEM 9C3Z18124A
- OEM HC3Z18124S
- FCS Auto Parts 341580
- Gabriel G63886
- OEM HC3Z18124P
- KYB 565121
- OEM BC3Z18124L
- OEM BC3Z18124H
- OEM HC3Z18124U
- OEM BC3Z18124R
- OEM 7C3Z18124EA
- Motorcraft ASH25763
- OEM BC3Z18124P
- Gabriel 61680
- OEM HC3Z18124T
- TRW JGT4920S
- OEM 7C3Z18124PBA
- OEM BC3Z18124AA
- OEM 8C3Z18124NK
- OEM 9C3Z18124PDA
- OEM 7C3Z18124PGA
- Motorcraft ASH435
- OEM HC3Z18124R
- Motorcraft ASH1134
- OEM 7C3Z18124NCA
- OEM HC3Z18124H
- OEM 7C3Z18124NGA
- OEM 9CZ18124A
- OEM BC3Z18124M
- OEM BC3Z18124X
- OEM BC3Z18124K
- Pro Comp Suspension ZX2022
- OEM 7C3Z18124APA
- Motorcraft ASH25757
- OEM 7C3Z18124P
- Motorcraft ASH25760
- Motorcraft ASH999
- OEM HC3Z18124N
- OEM 7C3Z18124NDA
- Motorcraft ASH866144
- Rancho RS5042
- Rancho RS55042
- KYB 349004
- Autopart International 2701460070
- AutoZone MS3331011B
- Ford LC3Z18124E
- Sensen 12140252
- Top Quality 78911266
- NAPA Shocks 76525
- AL-KO Xtreme 813009
- Gold Shock Absorber 9150932
- Bulldog HD HD12140649
- PRT 173859
- PM Auto PM6001013
- FCS 341580
- Ford PC3C18045SEA
- Ford PC3C18045 BAA
- Ford PC3C18045BFA
- Ford PC3C18045SDA
- Ford PC3C18045SBA
- Ford PC3C18045SCA
- Duralast MS3331011B
- Ford PC3Z18124BEA
- Ford PC3Z18124SEA
- Ford PC3Z18124BAA
- Ford PC3Z18124BBA
- Ford PC3Z18124SBA
- Ford PC3Z18124SCA
- NAPA Shocks NS911266
- Ford PC3C18045BEA
- Ford PC3C18045BBA
- Ford PC3Z18124BFA
- Ford PC3Z18124BCA
- Ford PC3Z18124SDA
- Ford PC3C18045SAA
- Ford PC3Z18124SAA
- Ford PC3C18045BCA
MONROE 34525 Cross Reference
We have 71 alternatives for the 34525 by MONROE:
- FT4Z5806010AD
- 34525MM
- OEM HC3Z18124V
- GABRIEL 77951
- OEM 8C3Z18124PK
- OEM 7C3Z18124NBA
- MOTORCRAFT ASH1133
- PRO COMP SUSPENSION 321553
- OEM BC3Z18124S
- OEM HC3Z18124M
- MOTORCRAFT ASH434
- OEM BC3Z18124Y
- OEM 7C3Z18124NEA
- SACHS NORTH AMERICA 316638
- OEM 7C3Z18124PCA
- MOTORCRAFT ASH25761
- KYB 554347
- MOTORCRAFT ASH25759
- AUTOZONE MS33-31011B
- OEM BC3Z18124Z
- OEM BC3Z18124U
- OEM 7C3Z18124ARA
- OEM BC3Z18124AB
- OEM BC3Z18124N
- OEM HC3Z18124L
- MOTORCRAFT ASH25758
- BILSTEIN 24186674
- OEM 9CZ18124B
- OEM 7C3Z18124PDA
- OEM HC3Z18124K
- OEM BC3Z18124T
- OEM 9C3Z18124A
- OEM HC3Z18124S
- FCS AUTO PARTS 341580
- GABRIEL G63886
- OEM HC3Z18124P
- KYB 565121
- OEM BC3Z18124L
- OEM BC3Z18124H
- OEM HC3Z18124U
- OEM BC3Z18124R
- OEM 7C3Z18124EA
- MOTORCRAFT ASH25763
- OEM BC3Z18124P
- GABRIEL 61680
- OEM HC3Z18124T
- TRW JGT4920S
- OEM 7C3Z18124PBA
- OEM BC3Z18124AA
- OEM 8C3Z18124NK
- OEM 9C3Z18124PDA
- OEM 7C3Z18124PGA
- MOTORCRAFT ASH435
- OEM HC3Z18124R
- MOTORCRAFT ASH1134
- OEM 7C3Z18124NCA
- OEM HC3Z18124H
- OEM 7C3Z18124NGA
- OEM 9CZ18124A
- OEM BC3Z18124M
- OEM BC3Z18124X
- OEM BC3Z18124K
- PRO COMP SUSPENSION ZX2022
- OEM 7C3Z18124APA
- MOTORCRAFT ASH25757
- OEM 7C3Z18124P
- MOTORCRAFT ASH25760
- MOTORCRAFT ASH999
- OEM HC3Z18124N
- OEM 7C3Z18124NDA
- BULLDOG HD SHOCKS HD1214-0649
Fits Vehicles
- Ford F-250 Super Duty (2005-2024)
- Ford F-350 Super Duty (2005-2024)
