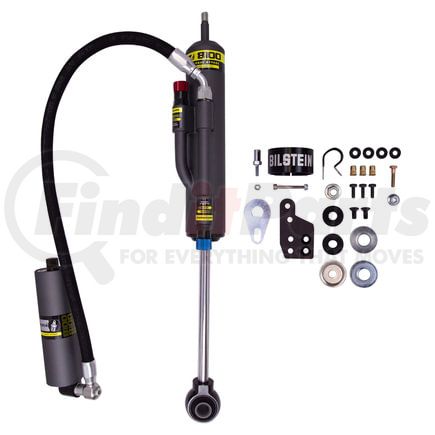

BILSTEIN 25-288162 Part Description
Manufacturer
Product Description
B8 8100 (Bypass) - Suspension Shock Absorber
Application Summary
Toyota FJ Cruiser 2014-2007
Features & Benefits
- Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
- Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
- 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
SUSPENSION SHOCK ABSORBER
BILSTEIN 25-288162 Specifications
Product Attributes
| Internal Design | Monotube |
| Segment | Light Truck |
| Lower Mount Type | Eye 19.25mm |
| Boot Included | No |
| Parttype | Shocks / Struts |
| Prop 65 (Y/N) | Y |
| Spring Seat Included | No |
| Extended Length (in) | 24.09 |
| Collapsed Length (in) | 14.72 |
| Adjustable Damping | Double Adjustable – Compression and Rebound |
| Finish | EVO Grey |
| Title | Bilstein Shock Absorbers |
| Body Diameter (id) | 60mm |
| Body Design | Bypass Body (Non-Coilover) |
| RESERVOIR | Yes |
| Series | B8 8100 (Bypass) |
| Collapsed Length (mm) | 374.0 |
| Upper Mount Type | Stem |
| Extended Length (mm) | 612.0 |
Additional Information
| MSDS Sheet Number | USA SDS_Shock_Air Spring_V2_EN.pdf |
| Remanufactured Part | N |
| Refurbished Part | N |
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00651860880976 |
BILSTEIN 25-288162 Part Interchanges
| Brand | Part Number |
|---|---|
| King Shocks | 25001-382 |
| Old Man Emu | BP5160025 |
BILSTEIN 25-288162 Fits Vehicles
- Toyota FJ Cruiser (2007-2014)
