BILSTEIN 41-324172 Part Description
Manufacturer
Product Description

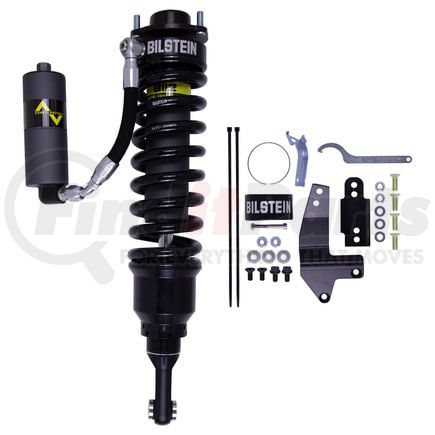

B8 8112 (ZoneControl CR) - Front Left Corner Module
Application Summary
Toyota 4Runner 2024-2010, FJ Cruiser 2014-2010
Features & Benefits
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
SUSPENSION SHOCK ABSORBER AND COIL
BILSTEIN 41-324172 Specifications
Product Attributes
| Extended Length (mm) | 579.1 |
| Upper Mount Type | Special |
| Body Diameter (id) | 60mm |
| Internal Design | Monotube |
| Body Design | Smooth Body (Coilover) |
| Collapsed Length (mm) | 456.9 |
| Finish | Dampers: EVO Grey / Springs: Black |
| Segment | Light Truck |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Boot Included | No |
| Body Material | Steel |
| Title | Bilstein Shock Absorbers |
| Lower Mount Type | Eye 14.1mm |
| RESERVOIR | Yes |
| Adjustable Damping | Non-Adjustable |
| Collapsed Length (in) | 17.99 |
| Extended Length (in) | 22.80 |
| Parttype | Shocks / Struts |
| Prop 65 (Y/N) | Y |
| Spring Seat Included | Yes |
| Series | B8 8112 (ZoneControl CR) |
Additional Information
| MSDS Sheet Number | USA SDS_Shock_Air Spring_V2_EN.pdf |
| Remanufactured Part | N |
| Refurbished Part | N |
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00651860896700 |
BILSTEIN 41-324172 Cross References
BILSTEIN 41-324172 Fits Vehicles
- Toyota FJ Cruiser (2010-2014)
- Toyota 4Runner (2010-2024)
