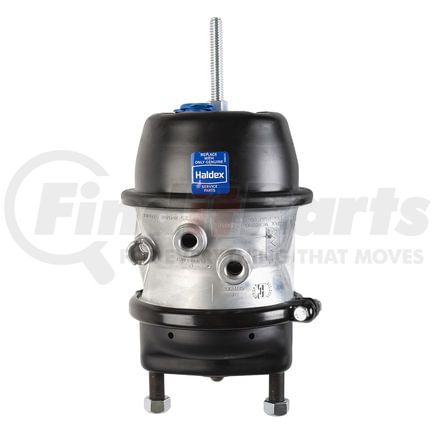

(888) 312-8812 Login SignupHALDEX GC2030D GoldSeal Double Diaphgram Spring Brake - 2030 (Service Chamber Size), 2.5 in. Stroke Length, Standard Stroke
$16699
Limited availability at this price!
2 Day Lead Time
Get it by Friday, Feb 20
HALDEX GC2030D Part Description
Manufacturer
Product Description
Brake Chamber GoldSeal 2030 Air Disc
Application Summary
Gold Seal Double Diaphragm Spring Brake for ADB 20/30(1) unit with fasteners. 1 wheel end
Features & Benefits
- Uses superior power spring technology for unparalleled force output consistency
- Has powder-coated housing that effectively resists fatigue and corrosion
- Comes with two O-rings for positive sealing and plastic bearings for extended life
- World-class diaphragm that’s made of high-quality rubber compound for superior flexibility and heat- and cold-resistance
- With rugged powder-coated service housing for corrosion protection
- Comes in a variety of sizes to fit all drum brake applications
Haldex GoldSeal Air Brake Spring Brake
Equip your vehicle with a high-quality Haldex GoldSeal air brake spring brake. This product is the only truly sealed double diaphragm spring brake specifically designed for heavy duty applications.
HALDEX GC2030D Specifications
Product Attributes
| Air Port Position | 0° |
| Bracket to End of Spring Housing Length | 9.44 in. |
| Freight Class | 70 |
| Piggyback Length | 7.97 in. |
| Series | GoldSeal |
| Service Chamber Size | 2030 |
| Service Clampband Position | 160° |
| Service Clampband Size | 9.41 in. |
| Service Housing to Push Rod Length | .59 in. |
| Spring Housing Flange Size | 8.26 in. |
| Stroke Length | 2.5 in. |
| Stroke Type | Standard |
| Stud Distance | 4.75 in. |
| A - Length from mounting bracket to end of Spring Housing | 9.44" |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412310080 |
| Harmonized Tariff Code (HTS) | 8412310080 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Special | See Haldex Aftermarket Product warranty Policy (L20221W).pdf |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| Core Group | - |
| UPC | 00767653343822 |
| VMRS Code | 013004027 |
HALDEX GC2030D Cross References
| Brand | Part Number |
|---|---|
| 013-004-027, HDXGC2030D | |
| TSE Brakes | 2024HTND2-3626 |
HALDEX GC2030D Customer Reviews
No reviews yet
Be the first to review this product!
HALDEX GC2030D Manufacturer Information
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
