BILSTEIN 25-291322 Part Description
Manufacturer
Product Description

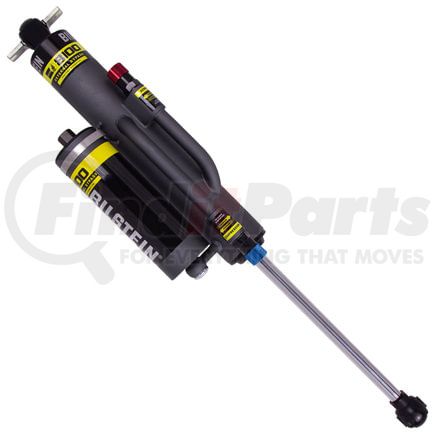

B8 8100 (Bypass) - Suspension Shock Absorber
Application Summary
Jeep Wrangler 2017-2007, Wrangler JK 2018
Features & Benefits
- Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
- Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
- 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
SUSPENSION SHOCK ABSORBER
BILSTEIN 25-291322 Specifications
Product Attributes
| Internal Design | Monotube |
| Adjustable Damping | Double Adjustable Compression and Rebound with Click Adjuster Knobs |
| Finish | EVO Grey |
| Title | Bilstein Shock Absorbers |
| Lower Mount Type | Eye 12.1mm |
| Body Diameter (id) | 60mm |
| Boot Included | No |
| Body Design | Bypass Body (Non-Coilover) |
| Parttype | Shocks / Struts |
| RESERVOIR | Yes |
| Prop 65 (Y/N) | Y |
| Series | B8 8100 (Bypass) |
| Spring Seat Included | No |
| Collapsed Length (mm) | 436.0 |
| Extended Length (in) | 27.83 |
| Upper Mount Type | Bar Pin |
| Collapsed Length (in) | 17.17 |
| Extended Length (mm) | 707.0 |
| Segment | Light Truck |
Additional Information
| MSDS Sheet Number | USA SDS_Shock_Air Spring_V2_EN.pdf |
| Remanufactured Part | N |
| Refurbished Part | N |
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00651860857688 |
BILSTEIN 25-291322 Cross References
| Brand | Part Number |
|---|---|
| Old Man Emu | BP5160030 |
BILSTEIN 25-291322 Fits Vehicles
- Jeep Wrangler JK (2018)
- Jeep Wrangler (2007-2017)
BILSTEIN 25-291322 Customer Reviews
No reviews yet
Be the first to review this product!
BILSTEIN 25-291322 Manufacturer Information
About BILSTEIN Of America
Founded in 1873, BILSTEIN is a world leading manufacturer of monotube gas pressure shock absorbers. With their main headquarters located in Germany, BILSTEIN is an original equipment supplier to BMW, Jaguar, Mercedes-Benz, Porsche, GM, Chrysler, Ford, Toyota and many others. Today, BILSTEIN Aftermarket and Motorsports has grown to nearly 630 employees located in three locations around the United States and distributes more than 3,500 part numbers into the U.S. aftermarket. BILSTEIN operates within ThyssenKrupp Component Technologies Group.
