DELPHI part description

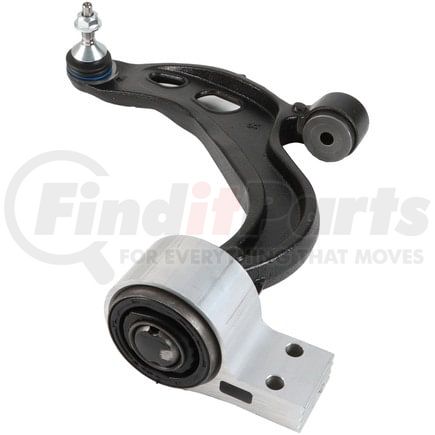

Control Arm and Ball Joint Assembly

Product Description

Control Arm and Ball Joint Assembly

Product Attributes

Thread Direction Clockwise (Right)
Bushing Color Black
Finish Painted
Pre-Greased Yes
Bushings Included Yes
Dust Boot Included Yes
Ball Joint Mounting Type Press In
Ball Joint Stud Type Threaded
Ball Joint Included Yes
Control Arm Construction Casting/Forged
Control Arm Material Cast Iron
Mounting Hardware Included Yes
Grade Type Premium
Boot Material Chloroprene Rubber (CR)
Adjustable No
Locking Nut Included Yes
Greasable No
Control Arm Color Black
Ball Joint Thread Diameter 16.00 MM
Ball Joint Stud Length 35.00 MM
Thread Diameter 16.00 MM
Boot Color Black
Steering Type Power
Bearing Material Plastic
Bushing Material Rubber
Dust Boot Material Chloroprene Rubber (CR)
9532 339.40 MM
Bushing Inside Diameter 14.20 MM
Bushing Length 60.00 MM
Position(s) Front Left
Ball Joint Thread Diameter 0.630 IN
Ball Joint Stud Length 1.378 IN
Thread Diameter 0.630 IN
9532 13.362 IN
Bushing Inside Diameter 0.559 IN
Bushing Length 2.362 IN

Additional Information

Country of Origin (Primary) TR
Harmonized Tariff Code (Schedule B) 8708807000
Harmonized Tariff Code (HTS) 8708806000
Warranty Special Limited Lifetime
Warranty Special UOM LF
UPC 00689604391068
VMRS Code 016001001
UNSPSC 25172013

Part Interchanges

Fits Vehicles

  • Ford Special Service Police Sedan (2014-2018)
  • Ford Police Interceptor Sedan (2013-2019)
  • Lincoln MKT (2013-2019)
  • Lincoln MKS (2013-2016)
  • Ford Flex (2013-2015)
  • Ford Taurus (2013-2019)
