DELPHI part description

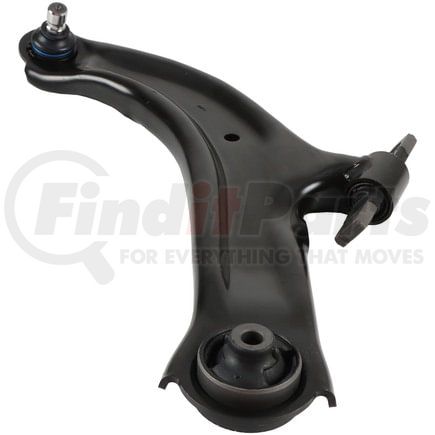

Control Arm and Ball Joint Assembly

Product Description

Control Arm and Ball Joint Assembly

Product Attributes

Bushing Color Black
Pre-Greased Yes
Bushings Included Yes
Dust Boot Included Yes
Ball Joint Mounting Type Press In
Ball Joint Stud Type Grooved
Ball Joint Included Yes
Control Arm Construction Stamped
Control Arm Material Steel
Mounting Hardware Included Yes
Grade Type Premium
Boot Material Chloroprene Rubber (CR)
Adjustable No
Greasable No
Boot Color Black
Steering Type Power
Bearing Material Plastic
Bushing Material Rubber
Dust Boot Material Chloroprene Rubber (CR)
9532 233.00 MM
Bushing Inside Diameter 12.20 MM
Bushing Length 53.00 MM
Position(s) Front Left Lower
9532 9.173 IN
Bushing Inside Diameter 0.480 IN
Bushing Length 2.087 IN

Additional Information

Country of Origin (Primary) TR
Harmonized Tariff Code (Schedule B) 8708807000
Harmonized Tariff Code (HTS) 8708806590
Warranty Special Limited Lifetime
Warranty Special UOM LF
UPC 00689604390986
VMRS Code 016001001
UNSPSC 25172013

Part Interchanges

Fits Vehicles

  • Nissan Sentra (2007-2012)
