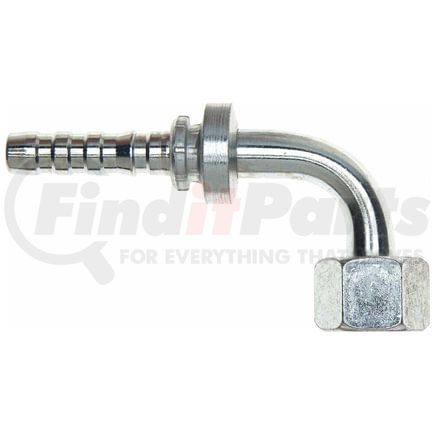

(888) 312-8812 Login SignupGATES G20655-1018 Female DIN 24 Cone Swvl-Light Series with O-Ring-90 Bent Tube (GlobalSpiral)
Tap to view 2 more
SHIPS MONDAY
MSRP: $88.23
$8599
Save $2.24
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
GATES G20655-1018 Part Description
Manufacturer
Product Description
Female DIN 24 Cone Swvl-Light Series with O-Ring-90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20655-1018 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female DIN 24 Cone Swivel - Light Series w/ O-Ring - 90 Bent Tube |
| Industrial Description | 10GS-18FDLORX90 |
| Thread Size | M26X1.5 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Outside Diameter | 18 MM |
| Nut Hex Size | 32 MM |
| Drop Length | 2.03 IN |
| Cut-Off Length | 2.49 IN |
| Length | 4.47 IN |
| Inside Diameter | 15.9 MM |
| Drop Length | 51.6 MM |
| Cut-Off Length | 63.2 MM |
| Length | 113.5 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00770075352655 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20655-1018 Part Interchanges
| Brand | Part Number |
|---|---|
| Dayco | 101766 |
| NAPA | G20655-1018 |
