(888) 312-8812 Login SignupGATES G24357-2424 Code 62 O-Ring Flange Heavy - 45 Bent Tube (GlobalSpiral MAX Pressure)
Tap to view 3 more
$23699
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 30
GATES G24357-2424 Part Description
Manufacturer
Product Description

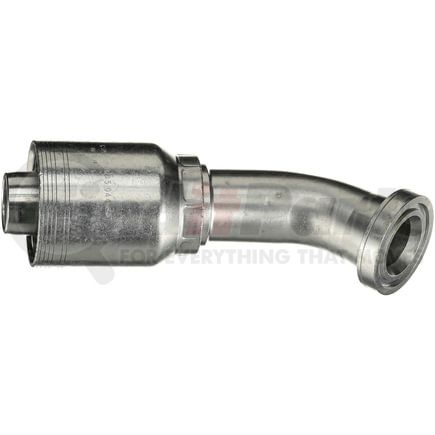

Code 62 O-Ring Flange Heavy - 45 Bent Tube (GlobalSpiral MAX Pressure)
Features & Benefits
- Greater power and capacity from existing equipment by replacing 2 in., 5000 psi hose assemblies
- A flexible, easier-to-route hose assembly to replace 2 in. rigid pipe on crowded equipment platforms
- A stem machined from a single piece of solid steel for greater strength and integrity
- A no-skive design requiring no special equipment and skills, reducing the risk of blow-offs or leaks
GATES G24357-2424 Specifications
Product Attributes
| Coupling Description | GlobalSpiral MAX Pressure Code 62 O-Ring Flange Heavy - 45 Bent Tube |
| Industrial Description | 24GSM-24FLH45M |
| Inside Diameter | 1.5 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hose - EFG6K - SAE 100R15, EFG5K - SAE 100R13 |
| Flange Thickness | .5 in |
| Flange Diameter | 2.5 IN |
| Drop Length | 1.73 IN |
| Cut-Off Length | 5.39 IN |
| Length | 9.13 IN |
| Inside Diameter | 38.1 MM |
| Flange Thickness | 12.7 MM |
| Flange Diameter | 63.5 MM |
| Drop Length | 43.9 MM |
| Cut-Off Length | 137 MM |
| Length | 231.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00770075378624 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G24357-2424 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | 16F78-24-24 |
| Dayco | 102229 |
| Weatherhead | 47024ED54, 6SP24WD54 |
| NAPA | G24357-2424 |
