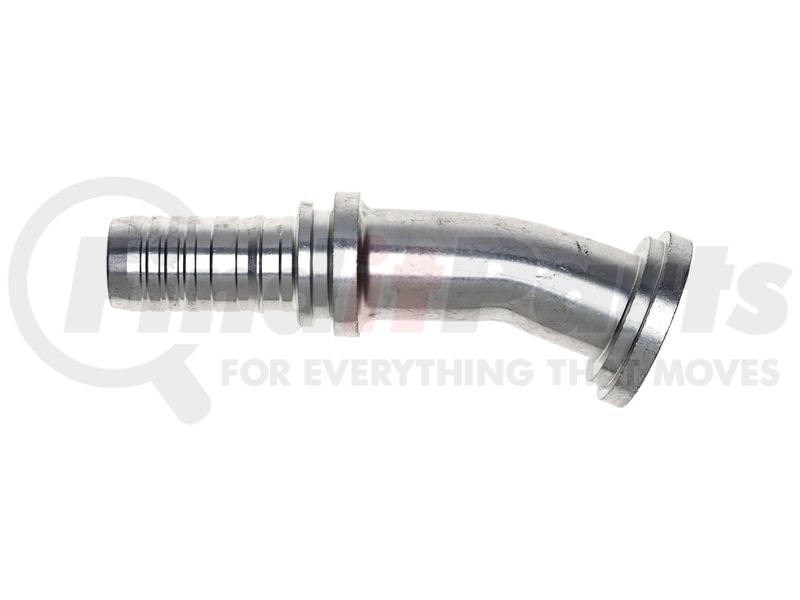

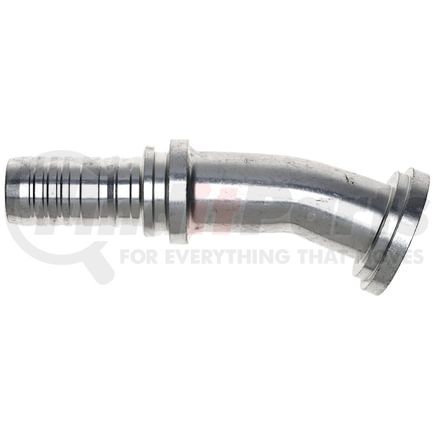

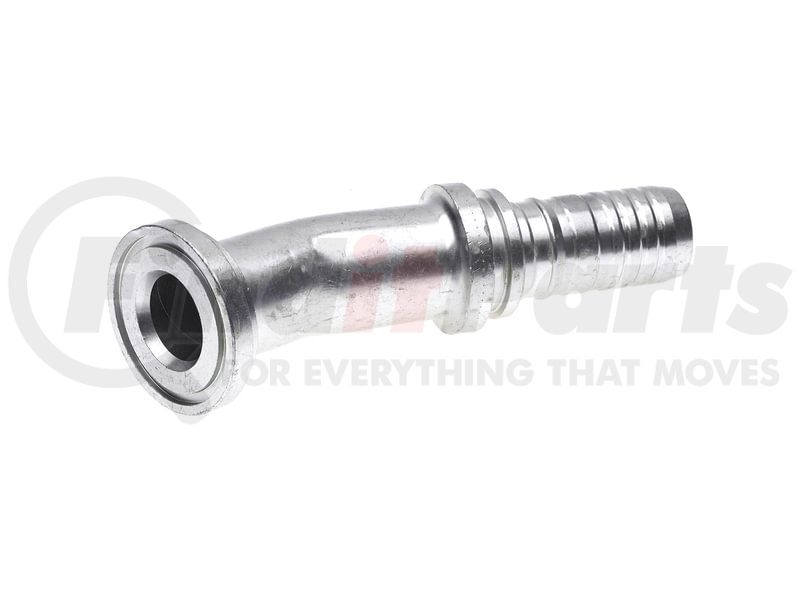

(888) 312-8812 Login SignupGATES G22302-2424 Code 61 O-Ring Flange - 22 1/2 Bent Tube (GlobalSpiral Plus)
Tap to view 2 more
$14149
Limited availability at this price!
5 Day Lead Time
Get it by Friday, Jan 16
GATES G22302-2424 Part Description
Manufacturer
Product Description
Code 61 O-Ring Flange - 22 1/2 Bent Tube (GlobalSpiral Plus)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G22302-2424 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Plus Code 61 O-Ring Flange - 22 1/2 Bent Tube |
| Industrial Description | 24GSP-24FL22M |
| Inside Diameter | 1.5 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hydraulic Hose (-24 & -32) |
| Maximum Working Pressure | 3000 PS |

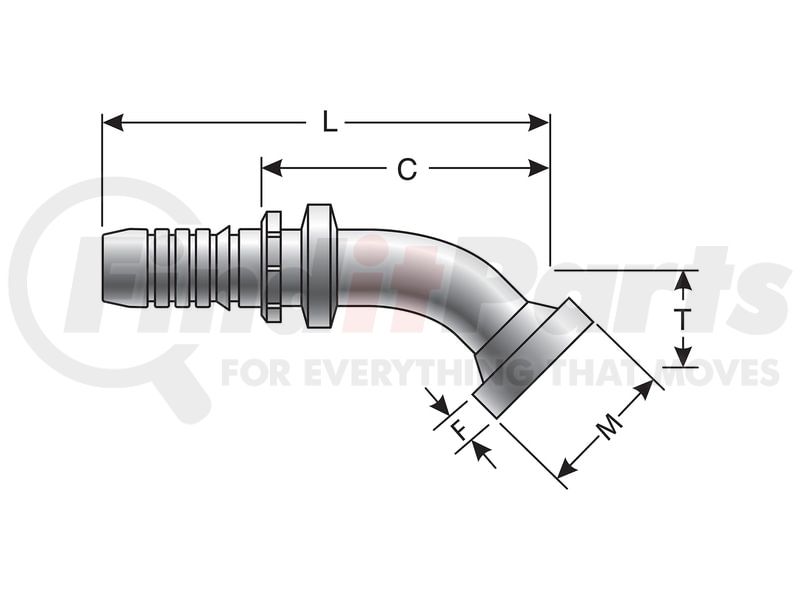

| Flange Thickness | .32 in |
| Flange Diameter | 2.38 IN |
| Drop Length | .71 IN |
| Cut-Off Length | 5.41 IN |
| Length | 8.31 IN |
| Inside Diameter | 38.1 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 60.5 MM |
| Drop Length | 18 MM |
| Cut-Off Length | 137.5 MM |
| Length | 211 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00770075414391 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G22302-2424 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | 11671-24-24 |
| Dayco | 100147, 100147U |
| Weatherhead | 43024UH05 |
| Goodyear | 28330-2424 |
| NAPA | G22302-2424 |
