GATES part description
Product Description

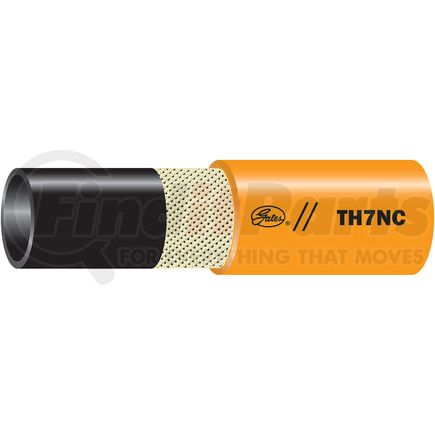

TH7NC Non-Conductive Hydraulic Thermoplastic Hose - SAE 100R7
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series] and Swage PCTS Couplings [G51 Series]
- Orange color TH7NC meets SAE 100R7 non-conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with a significantly tighter bend radius
- Meets SAE 100R7 Electrical Conductivity Test. Maximum leakage should not exceed 50 microamperes when subjected to 75 kV/Ft. for five minutes
- Meets ANSI A92.2 for vehicle mounted aerial devices
- Temperature Range: Petroleum and Synthetic Oils: -65 Deg. F to +200 Deg. F (-54 Deg. C to +93 Deg. C) constant; Water, Water/Oil Emulsions, Water Glycol: up to +158 Deg. F (+70 Deg. C)
Product Attributes
| Product Type | TH7NC Non-Conductive Hydraulic Hose - SAE 100R7 |
| Industrial Description | 12TH7NCXCTN |
| Type | Thermoplastic Hydraulic Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 1250 PS |
| Burst Pressure | 5000 PS |
| Temperature Rating | -65 Deg. F to +200 Deg. F (Petroleum & Synthetic Oils), to +158 Deg. F (Water/Oil & Water Glycol) |
| Length | 200 FT |
| 9941 | 12 |
| Inside Diameter | .75 IN |
| Outside Diameter | 1.05 IN |
| 9879 | 5 IN |
| Tube Description | Seamless Nylon (Type Z) |
| Hose Material | Seamless Nylon (Type Z) |
| Reinforcement Material | Synthetic Fiber (Except -2) |
| Cover Material | Urethane - Non-Perforated for Applications Requiring Electrical Non-Conductivity |
| Cover Type | Resistant to Hydraulic Fluid, High Temperature, Aging & Weathering |
| Cover Color | Orange |
| 9856 | MegaCrimp |
| 9453 | 100R7 |
| 9954 | N/A |
| 9953 | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 3917310000 |
| Country of Origin (Primary) | JP |
| UPC | 00770075321866 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
