GATES 71043 Part Description
Manufacturer
Product Description

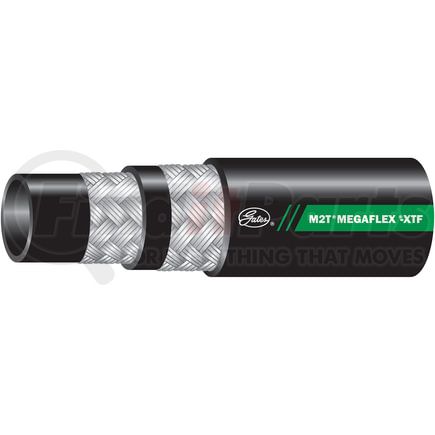

M2T MegaFlex 2-Wire Braid Hose - SAE 100R16 - XtraTuff Cover
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp Couplings [G25 Series], Stainless Steel Braid Couplings [G17 Series] and Stainless Steel Spiral Couplings [G18 Series]
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
- Tested to industry-leading 600,000 impulse cycles
- XtraTuff hose lasts up to 25 times longer than standard hose
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
GATES 71043 Specifications
Product Attributes
| Product Type | M2T MegaFlex 2-Wire Braid Hose - SAE 100R16 - XtraTuff Cover |
| Industrial Description | 10M2T-XTFXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 3800 PS |
| Burst Pressure | 15200 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 220 FT |
| Dash Size | 10 |
| Inside Diameter | .625 IN |
| Outside Diameter | .95 IN |
| Bend Radius | 3 IN |
| Tube Description | Black, Oil Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Braids, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline |
| Cover Type | Type C2 - Flame, Oil, Abrasion & Weather Resistant - XtraTuff Cover |
| Cover Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp, Stainless Steel B |
| SAE Standard | 100R16 |
| EN Standard | 857 2SC, 853 2SN |
| ISO Standard | 11237 2SC R16, 1436 2SN R2 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | MX |
| UPC | 00770075296393 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 71043 Part Interchanges
| Brand | Part Number |
|---|---|
| NAPA | 71043 |
