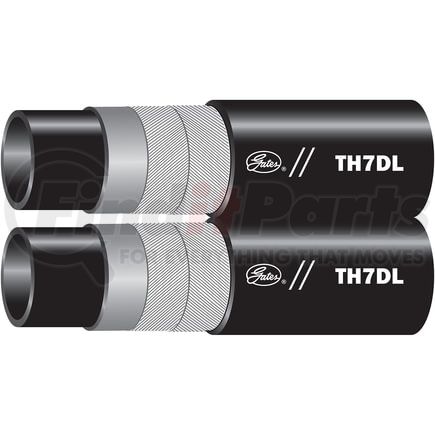

Gates 85422 - TH7DL Dual Line Hydraulic Thermoplastic Hose - SAE 100R7
$65749
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
TH7DL Dual Line Hydraulic Thermoplastic Hose - SAE 100R7
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series]
- TH7DL hose meets or exceeds performance requirements of SAE 100R7 with significantly tighter bend radius
- Temperature Range: Petroleum and Synthetic Oils: -65 Deg. F to +200 Deg. F (-54 Deg. C to +93 Deg. C) constant; Water, Water/Oil Emulsions, Water Glycol: up to +158 Deg. F (+70 Deg. C)
Product Attributes
| Product Type | TH7DL Dual Line Hydraulic Hose - SAE 100R7 |
| Industrial Description | 5TH7DLX50FT |
| Type | Thermoplastic Hydraulic Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 2500 PS |
| Burst Pressure | 10000 PS |
| Temperature Rating | -65 Deg. F to +200 Deg. F (Petroleum & Synthetic Oils), to +158 Deg. F (Water/Oil & Water Glycol) |
| Length | 40 FT |
| 9941 | 5 |
| Inside Diameter | .3125 IN |
| Outside Diameter | .56 IN |
| 9879 | 2.25 IN |
| Tube Description | Seamless Nylon (Type Z) |
| Hose Material | Seamless Nylon (Type Z) |
| Reinforcement Material | Synthetic Fiber |
| Cover Material | Urethane - Perforated for Use in General Hydraulic & Pneumatic Service |
| Cover Type | Resistant to Hydraulic Fluid, High Temperature, Aging & Weathering |
| Cover Color | Black |
| 9856 | MegaCrimp |
| 9453 | 100R7 |
| 9954 | N/A |
| 9953 | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 3917310000 |
| Country of Origin (Primary) | US |
| UPC | 00770075322207 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
