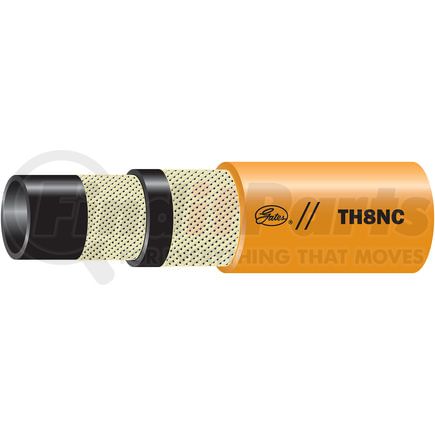

Gates 85419 - TH8NC Non-Conductive Hydraulic Thermoplastic Hose - SAE 100R8
$41299
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
TH8NC Non-Conductive Hydraulic Thermoplastic Hose - SAE 100R8
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series]
- Orange color TH8SNC meets SAE 100R8 non-conductivity requirements and meets or exceeds performance requirements of SAE 100R8 with a significantly tighter bend radius
- Meets SAE 100R8 Electrical Conductivity Test; maximum leakage should not exceed 50 microamperes when subjected to 75 kV/Ft. for five minutes
- Temperature Range: Petroleum and Synthetic Oils: -65 Deg. F to +200 Deg. F (-54 Deg. C to +93 Deg. C) constant; Water, Water/Oil Emulsions,Water Glycol: up to +158 Deg. F (+70 Deg. C)
Product Attributes
| Product Type | TH8NC Non-Conductive Hydraulic Hose - SAE 100R8 |
| Industrial Description | 4TH8NCX50FT |
| Type | Thermoplastic Hose |
| Hose Pressure Description | Very High Pressure |
| Maximum Working Pressure | 5000 PS |
| Burst Pressure | 20000 PS |
| Temperature Rating | -65 Deg. F to +200 Deg. F (Petroleum & Synthetic Oils), to +158 Deg. F (Water/Oil & Water Glycol) |
| Length | 40 FT |
| 9941 | 4 |
| Inside Diameter | .25 IN |
| Outside Diameter | .61 IN |
| 9879 | 2 IN |
| Tube Description | Seamless Nylon (Type Z) |
| Hose Material | Seamless Nylon (Type Z) |
| Reinforcement Material | Polyester |
| Cover Material | Urethane - Non-Perforated for Applications Requiring Electrical Non-Conductivity |
| Cover Type | Resistant to Hydraulic Fluid, High Temperature, Aging & Weathering |
| Cover Color | Orange |
| 9856 | MegaCrimp |
| 9453 | 100R8 |
| 9954 | N/A |
| 9953 | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 3917310000 |
| Country of Origin (Primary) | US |
| UPC | 00770075322283 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
Part Interchanges
