GATES 85416 Part Description
Manufacturer
Product Description

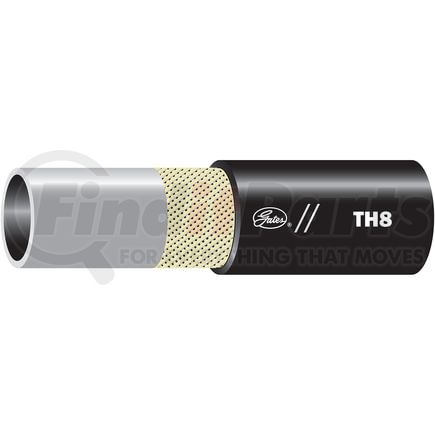

TH8 Hydraulic Thermoplastic Hose - SAE 100R8
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series]
- Meets or exceeds performance requirements of SAE 100R8 with a significantly tighter bend radius
- Temperature Range: Petroleum and Synthetic Oils: -65 Deg. F to +200 Deg. F (-54 Deg. C to +93 Deg. C) constant; Water, Water/Oil Emulsions, Water Glycol: up to +158 Deg. F (+70 Deg. C)
GATES 85416 Specifications
Product Attributes
| Product Type | TH8 Hydraulic Hose - SAE 100R8 |
| Industrial Description | 4TH8X50FT |
| Type | Thermoplastic Hydraulic Hose |
| Hose Pressure Description | Very High Pressure |
| Maximum Working Pressure | 5000 PS |
| Burst Pressure | 20000 PS |
| Temperature Rating | -65 Deg. F to +200 Deg. F (Petroleum & Synthetic Oils), to +158 Deg. F (Water/Oil & Water Glycol) |
| Length | 40 FT |
| Dash Size | 4 |
| Inside Diameter | .25 IN |
| Outside Diameter | .61 IN |
| Bend Radius | 2 IN |
| Tube Description | Seamless Nylon (Type Z) |
| Hose Material | Seamless Nylon (Type Z) |
| Reinforcement Material | Polyester |
| Cover Material | Urethane - Perforated for Use in General Hydraulic & Pneumatic Service |
| Cover Type | Resistant to Hydraulic Fluid, High Temperature, Aging & Weathering |
| Cover Color | Black |
| Coupling Recommendation | MegaCrimp |
| SAE Standard | 100R8 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 3917310000 |
| UPC | 00770075322252 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 85416 Part Interchanges
| Brand | Part Number |
|---|---|
| Dayco | 40104 |
| Weatherhead | H33604 |
| NAPA | 85416 |
