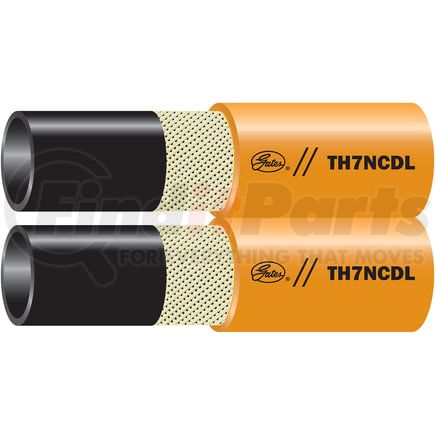

(888) 312-8812 Login SignupGATES 85424 TH7NCDL Non-Conductive Dual Line Hydraulic Thermoplastic Hose - SAE 100R7
$96549
Limited availability at this price!
5 Day Lead Time
Get it by Thursday, Jan 8
GATES 85424 Part Description
Manufacturer
Product Description
TH7NCDL Non-Conductive Dual Line Hydraulic Thermoplastic Hose - SAE 100R7
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series]
- Orange color TH7NCDL meets SAE 100R7 non-conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with significantly tighter bend radius
- Meets SAE 100R7 Electrical Conductivity Test; maximum leakage should not exceed 50 microamperes when subjected to 75 kV/Ft. for five minutes
- Meets ANSI A92.2 for vehicle mounted aerial devices
- Temperature Range: Petroleum and Synthetic Oils : -65 Deg. F to +200 Deg. F (-54 Deg. C to +93 Deg. C) constant; Water, Water/Oil Emulsions, Water Glycol: up to +158 Deg. F (+70 Deg. C)
GATES 85424 Specifications
Product Attributes
| Product Type | TH7NCDL Non-Conductive Dual Line Hydraulic Hose - SAE 100R7 |
| Industrial Description | 6TH7NCDLX50FT |
| Type | Thermoplastic Hydraulic Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 2250 PS |
| Burst Pressure | 9000 PS |
| Temperature Rating | -65 Deg. F to +200 Deg. F (Petroleum & Synthetic Oils), to +158 Deg. F (Water/Oil & Water Glycol) |
| Length | 50 FT |
| Dash Size | 6 |
| Inside Diameter | .375 IN |
| Outside Diameter | .64 IN |
| Bend Radius | 2.75 IN |
| Tube Description | Nylon |
| Hose Material | Nylon |
| Reinforcement Material | Synthetic Fiber |
| Cover Material | Urethane - Non-Perforated for Applications Requiring Electrical Non-Conductivity |
| Cover Type | Resistant to Hydraulic Fluid, High Temperature, Aging & Weathering |
| Cover Color | Orange |
| Coupling Recommendation | MegaCrimp |
| SAE Standard | 100R7 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 3917310000 |
| Country of Origin (Primary) | US |
| UPC | 00770075322221 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 85424 Part Interchanges
| Brand | Part Number |
|---|---|
| Weatherhead | H43566 |
| NAPA | 85424 |
