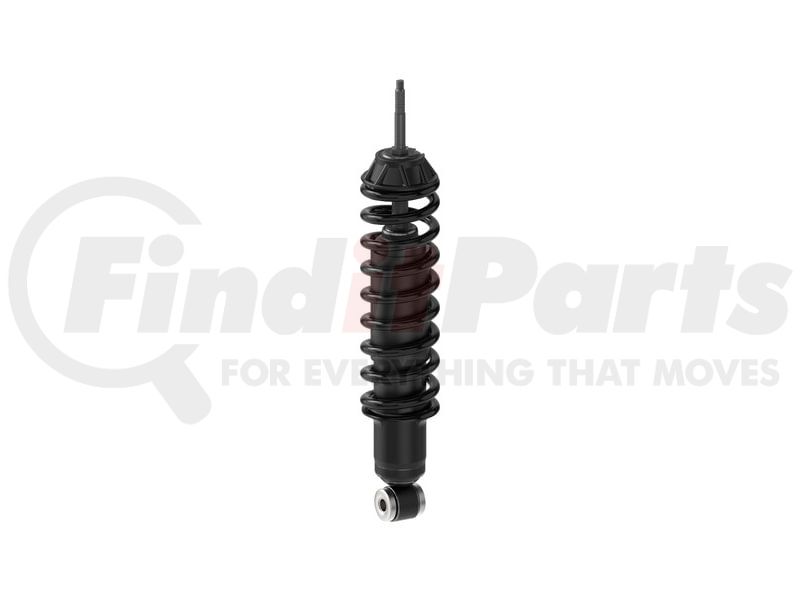

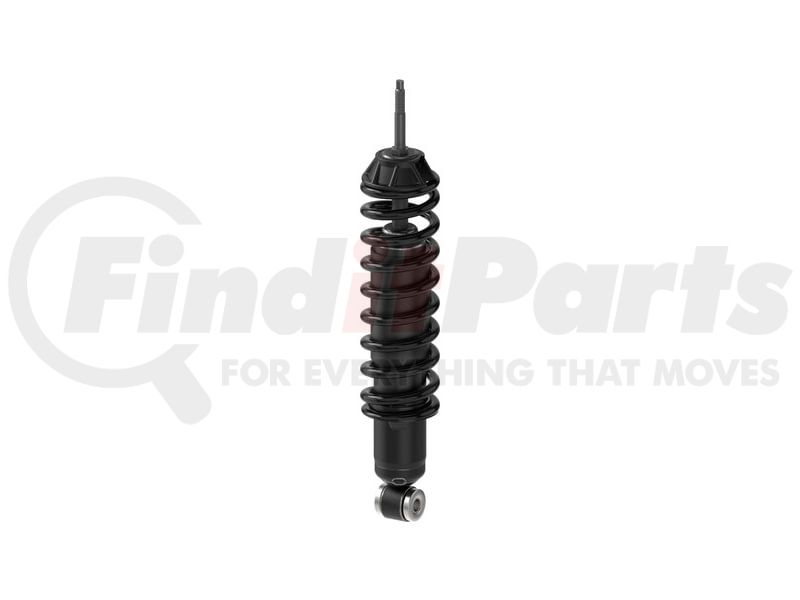

Name: Monroe 58628 Load Adjusting Suspension Shock Absorber and Coil Spring Assembly Pack of 2
SKU: 58628
Price: 177.99 USD
Availability: InStock

MONROE part description

Product Description

Load Adjusting Suspension Shock Absorber and Coil Spring Assembly Pack of 2

Features & Benefits

REDUCES SAG UNDER LOAD -- Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner's manual)
EXCEPTIONAL HANDLING -- Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
LONGER SERVICE LIFE -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade

Product Attributes

9791	LS26
Upper Mount Code	S4
9783	No
Hydraulic Lockout	No
Parts Pack(s)	P01135
Part Description	Shock Absorber and Coil Spring Assembly
Compressed Length	14.25 IN
Dust Shield Included	Yes
Dust Shield Material	Metal
Extended Length	23.875 in
9908	No
Lower Mount Type	Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL
Travel Length	9.625 IN
Upper Mount Type	Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Compressed Length	362 MM
Extended Length	606.4 MM
Travel Length	9.625 in
Travel Length	244.5 MM
9789	S4
Dust Shield Included	Yes
Shock Absorber Rod End Measuring Point	Base of Stem
Shock Absorber Body End Measuring Point	Center of Loop

Additional Information

MSDS Sheet Number	1164
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598010377
VMRS Code	016008003
UNSPSC	25172011

Part Interchanges

MONROE 58628 Cross Reference

We have 2 alternatives for the 58628 by MONROE:

Fits Vehicles

Ford F-100 Ranger (1997-2001)
Ford F-150 Heritage (2004)
Ford F-150 (1997-2003)
