SUNEX TOOLS part description

General Description

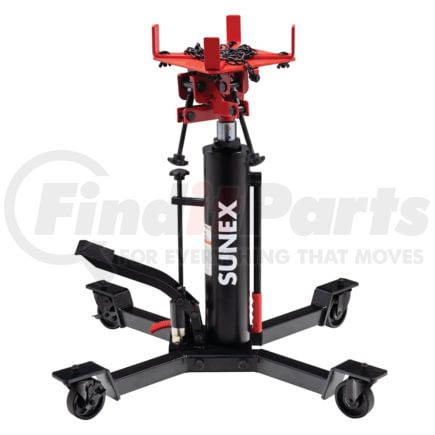

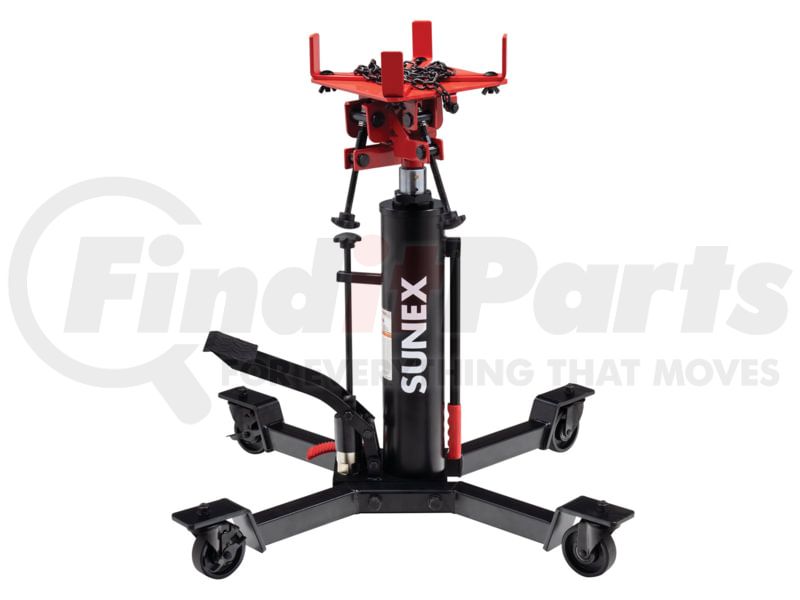

1,000 lb. Telescoping Transmission Jack, 1/2 Ton

Features and Benefits

  • Handles all passenger car, van, and light truck automotive transmissions, front wheel drive transaxles and any air-cooled VW engines
  • Telescopic two-stage hydraulics for greater lift range, precise load control and rapid lift
  • Slow release valve (knob above the foot pedal) that enables the user to slow the rate of descent as needed;
  • Foot-operated pump allows mechanic to use both hands to position and align saddle with transmission
  • Wide base with four 3"; swivel caster wheels
  • Low height: 35.5"; high height: 79.5"; saddle tilt forward: 53 degrees; saddle tilt backward: 30 degrees; saddle tilt side to side: 10-30 degrees; base size: 35"; x 31.25"; shipping weight: 167 lbs.
