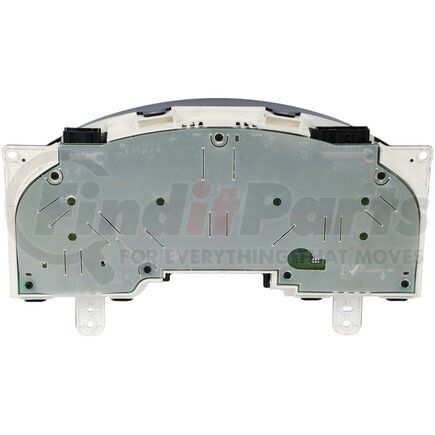

Name: A-1 Cardone 2L-2001 Instrument Cluster
SKU: 2l2001
Price: 265.49 USD
Availability: InStock

A-1 CARDONE part description

Instrument Cluster

Product Description

Instrument Cluster

Application Summary

Ford F-150 2006

Features & Benefits

Lens assemblies are restored to like-new quality or replaced with new polycarbonate material to improve visibility and provide that showroom look to the dashboard.
Halogen bulbs are 100% replaced, while LED bulbs are tested and replaced as needed to maintain proper function of the warning light system.
All gear-driven stepper motors are replaced with upgraded units to ensure long life.
Gauge needles are calibrated for proper operation.
Segments or display panels are validated and tested to ensure proper function.
As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.

Cluster, Instrument Cluster, Ins Cluster, Instrument, Gauge Cluster, Instrument Panel, Dash Panel

Product Attributes

Terminal Quantity	50
Terminal Type	Pin
Product Condition	Remanufactured
Wiring Harness Included	No
Connector Quantity	2
E-waste	Yes
Gauge Display Type	Analog
Gauge Face Color	Black
Gauge Writing Color	White
Cluster Light Bulbs Included	Yes
Gauge Pointer Color	Red
Gauge Quantity	6
Universal Or Specific Fit	Specific
Gauge Bezel Color	Black
Illuminated	Yes
Connector Shape	Rectangle
Terminal Gender	Male
Connector Gender	Female
Length (in)	15.5
FAQs	Yes. The latest service calibration is Flashed into the IPC at the factory using using an OEM tool and scanner.
Features and Benefits	Segments or display panels are validated and tested to ensure proper function
Width (in)	9.00
Minimum Gauge Diameter (in)	1.37
Maximum Gauge Diameter (in)	4.05
Analog Or Digital	Analog
Bezel Color	Black
Bulbs Included	Yes
Connector Gender	Female
Connector Quantity	2
Connector Shape	Rectangle
Face Color	Black
Gauge Quantity	6
Grade Type	Regular
Illuminated	Yes
Length	15.5 IN
Length	393.7 MM
4775	4.05 IN
4775	102.87 MM
4776	34.8 MM
4776	1.37 IN
Pointer Color	Red
Terminal Gender	Male
Terminal Quantity	50
Terminal Type	Pin
Universal Or Specific Fit	Specific
Width	9 IN
Width	228.6 MM
Wiring Harness Included	No
Package Contents	Instrument Cluster; Instructions
FAQ_Q1	Do you remanufacture instrument panel clusters (IPCs) with digital displays or just ones with analog gauges?
FAA_A1	Currently, we only remanufacture IPCs with analog gauges and integrated driver information centers, if equipped.
FAQ_Q2	What are the common failure modes you see?
FAA_A2	There are a few different categories of problems that we see: 1) The unit’s gauges do not function properly relative to inputs from the vehicle. 2) The indicator lights do not illuminate properly, if at all. 3) The lens assemblies have been damaged or broken so that visibility is reduced. 4) The units will not power on or function.
FAQ_Q3	What type of repairs do you perform?
FAA_A3	All stepper motors and halogen bulbs are 100% replaced. LEDs that do not function are replaced. Any faulty circuit board components are replaced as necessary, including the connector blocks and driver information center displays. We restore the lens assembly to a like-new condition or replace it with a new lens if that is not possible.
FAQ_Q4	How is the IPC cleaned?
FAA_A4	The IPC is disassembled 100%. Boards are hand cleaned with alcohol, and outer cases are batch washed.
FAQ_Q5	How is the IPC inspected?
FAA_A5	IPC printed circuit boards are 100% inspected using a vision system under magnification to detect trace erosions, poor solder points, and surface mount or thru-hole component failure.
FAQ_Q6	How is the IPC tested?
FAA_A6	Each unit is connected to a vehicle simulator that checks all functions. All gauges are tested at various levels of input to make sure they are calibrated, and the output is correct. All indicator signals are simulated to make sure the cluster displays the appropriate message or warning. All driver information display functions are tested for readability. Finally, the gear selector is checked to ensure it illuminates properly for all gears.
FAQ_Q7	Do I have the option of buying the cluster without programming?
FAA_A7	Currently, purchasing IPCs without programming is not an option. In the future, we hope to offer a remote programming plan.
FAQ_Q8	Is the odometer reset at the factory, or does the IPC have to go back to the dealership to set the odometer?
FAA_A8	The odometer is reset at the factory based on a signed affidavit from the consumer that confirms the VIN, mileage and engine hours.
FAQ_Q9	What info do I need to order?
FAA_A9	Accurate VIN, mileage are required and engine hours are optional.
FAQ_Q10	Is any vehicle-specific Flash programming required?
FAA_A10	Yes. The latest service calibration is Flashed into the IPC at the factory using using an OEM tool and scanner.
FAA_A11	On-car programming or relearning is not necessary on IPCs with analog gauges.
Contains Electronic Components	Circuit Board
Does it require SDS	Yes
FAQ_Q11	Is there any on-car programming or a relearn procedure that must be performed after installation?
Is Item A Chemical	No
Is Or Contains A Battery	No
Is Or Contains A Bulb	Incandescent
Is Prop Sixty Five Affected	No
Is the item CARB affected	No

Additional Information

Remanufactured Part	Y
Warranty Distance UOM	MI
Warranty Special	Limited Lifetime
Warranty Special UOM	TX
Warranty Time UOM	MO
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	9029200090
Harmonized Tariff Code (Schedule B)	9029204080
Harmonized Tariff Code (HTS)	9029204080
UPC	00884548225213

Part Interchanges

Fits Vehicles

Ford F-150 (2006)
