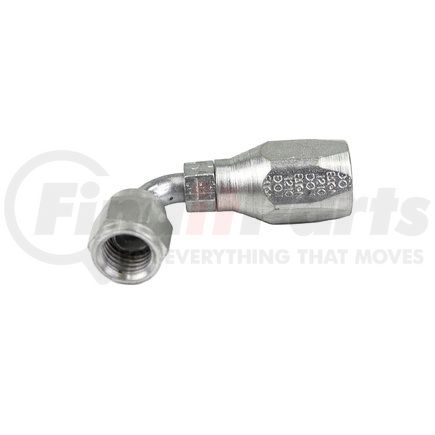

Name: Weatherhead 24704N-664 247 N Series Hydraulic Coupling / Adapter - Female Swivel, 90 degree, 0.56" hex, 7/16-20 thread
SKU: 24704n664
Price: 109.95 USD
Availability: InStock

WEATHERHEAD part description

Angle Shape	90 Degree
Compatible Hose ID	0.1875 inch
Compatible Hoses	H059 H069 H166 H169 H229 H366 H569
Compatible Tube OD	0.25 inch
Construction Style	Reusable
Drop Dimension	0.68
End Size 1	7/16 IN
End Gender 1	Female
End Type 1	JIC 37
End Type 2	Line/Hose/Tube
Finish Plating	Zinc; Clear Trivalent Chromate
Hex Size 1	0.5625 inch
Hex Size 2	0.625 inch
Hose Cut Off Factor	0.99 inch
Hose Dash Size	-4
InsIDe Diameter	0.99 inch
Item Type	Fitting Assembly
PrODuct Material	Carbon steel
Thread Size 1	7/16-20
Thread Sealant	No
Working Pressure	7000 psi

Features & Benefits

Fit for wide range of applications
Durable and dependable
Cut assembly times and boost production

WEATHERHEAD 24704N-664 Cross Reference

We have 1 alternatives for the 24704N-664 by WEATHERHEAD:

WH24704N664

Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
