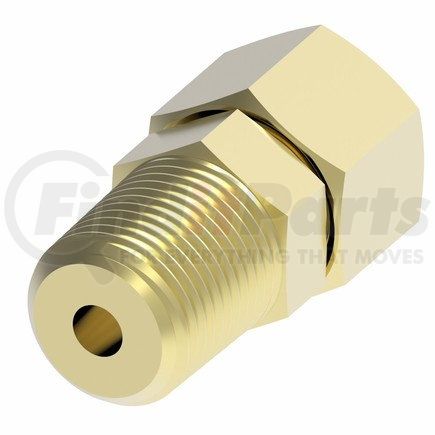

Name: Weatherhead 68X10 Compression And Self align Brass Male Connector
SKU: 68x10
Price: 49.95 USD
Availability: InStock

WEATHERHEAD part description

Product Name	Eaton Compression Male Connector
Certifications	SAE 060102BA
Item type	NPTF Male Male to Hose/Pipe/Tube Female
End Size 2	5/8 IN
Product material	Brass
Thread sealant	No
Working temperature - min	-65 F
Working pressure	2000 Psi
End Size 1	1/2 IN
Finish/plating	Nickel
Angle (shape)	Straight
Inside diameter (bore hole size)	.5 IN
Hex Size 1	.875 IN
End gender 2	Female
Thread Size 1	1/2-14
Tube OD 2	.644 IN
Tube OD 1	.5 IN
End type 2	Line/Hose/Tube
Application	Other - Instrumentation, hydraulic, and pneumatic syStems
End gender 1	Male
End type 1	NPTF
Hex Size 2	.9375 IN
Working temperature - max	250 F

WEATHERHEAD 68X10 Cross Reference

We have 1 alternatives for the 68X10 by WEATHERHEAD:

VELVAC 012055

Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
