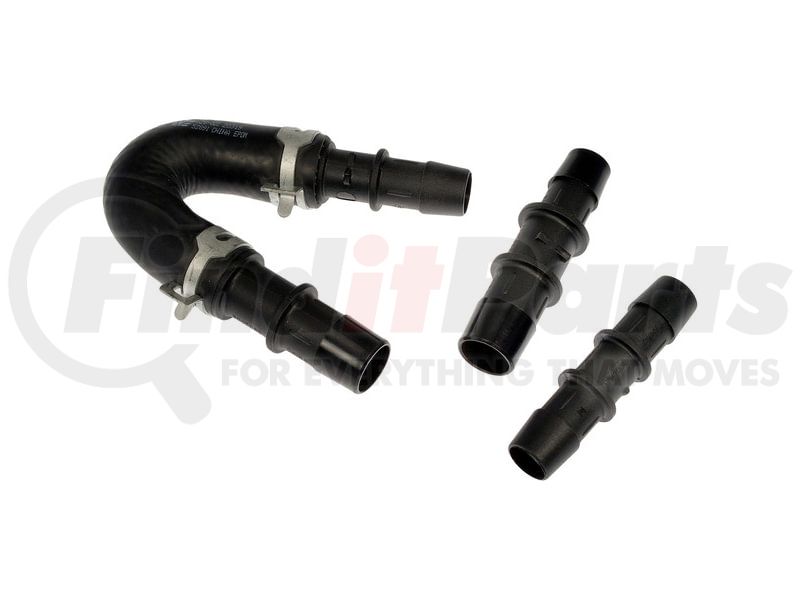

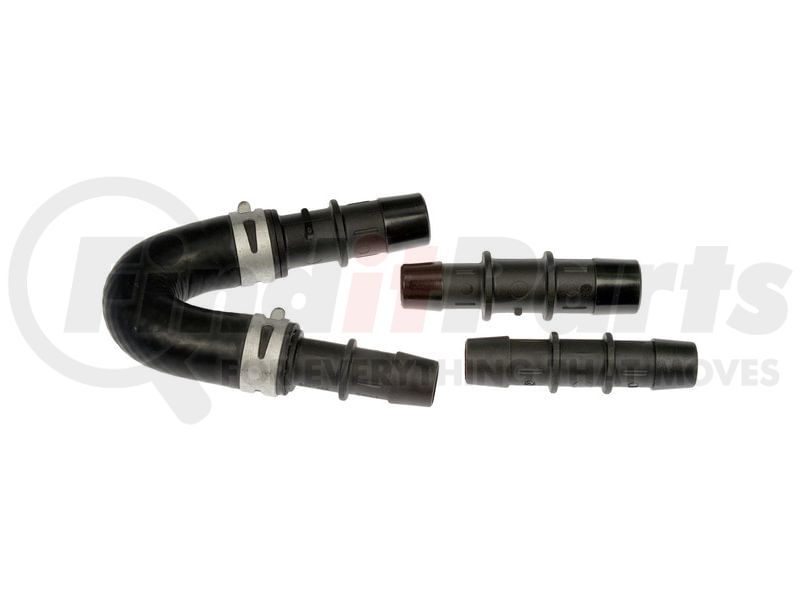

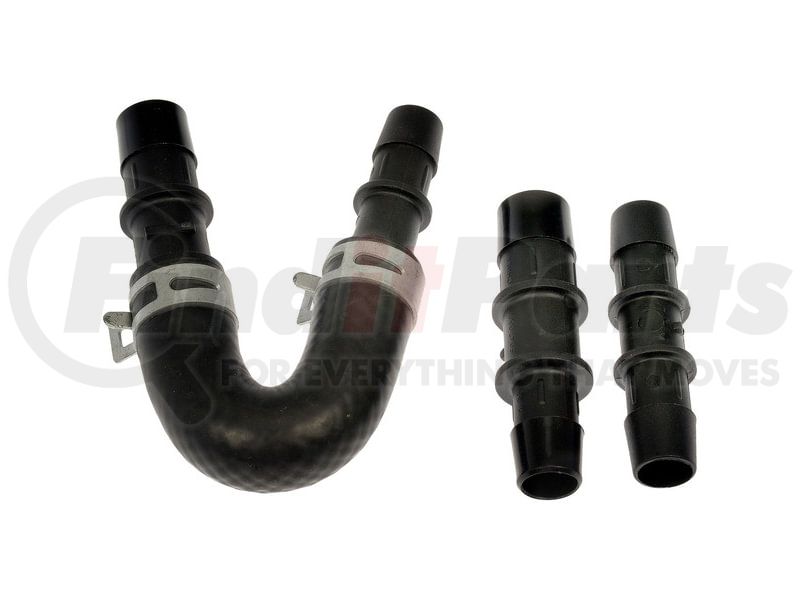

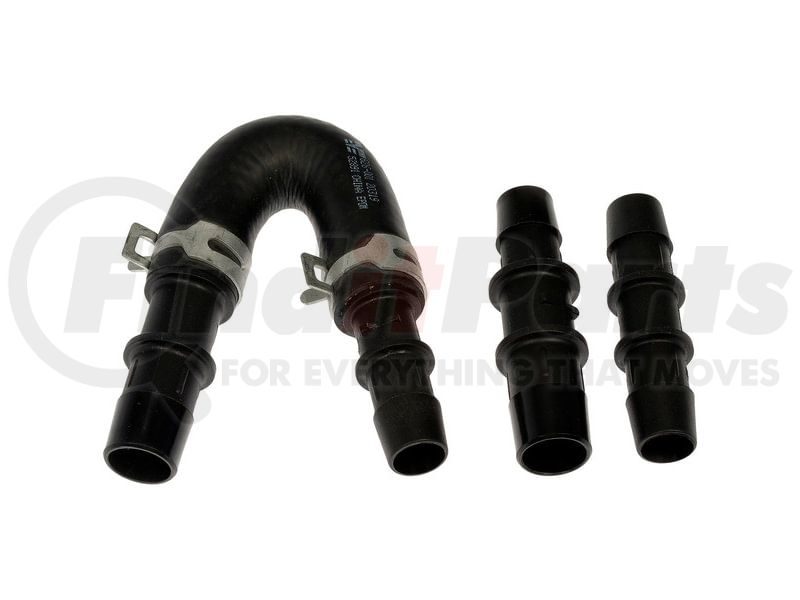

DORMAN 626-001CD Engine Heater Core Bypass Kit

Name: Dorman 626-001CD Engine Heater Core Bypass Kit
SKU: 626001cd
Price: 16.49 USD
Availability: InStock

★★★★★ (0) Write a Review

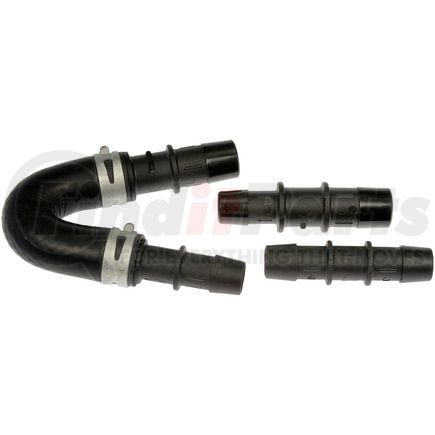

626-001CD by DORMAN - Engine Heater Core Bypass Kit

Tap to view 4 more

MSRP: $28.90

$16.49

Save $12.41

Limited availability at this price!

In Stock

Get it by Thursday, Feb 5

No Hassle Return Policy Details

Free Economy shipping on orders over $499 details

Orders placed over the weekend will ship the following business day

DORMAN 626-001CD Part Description

Manufacturer

DORMAN

Product Description

Engine Heater Core Bypass Kit

Features & Benefits

Ideal replacement - this HVAC heater hose assembly directly replaces the original heater hose on specified vehicle years, makes and models
Durable construction - this part is specifically designed to withstand extreme temperature changes and resist cracking and leaking
Cost-effective and reliable - offers original manufacturer quality at lower cost than getting replacement at dealer
Industry-leading design - professionally engineered by the aftermarket leader in heater hose assemblies

HVAC, Heater, Hose, Assembly, Air Conditioning, Heater, Heat, A/C, Hoses

Heater Core Bypass

DORMAN 626-001CD Specifications

Product Attributes

Material	EPDM
Color	Noir
Clamps Included	Oui
End 1 Inside Diameter	0.52 in
End 2 Inside Diameter	0.52 in
Contains Spring	Non
Maximum Working Pressure	50 PS
Centerline Length	9.4 IN
End 3 Inside Diameter	0.52 in
Hose Shape	Ensamble moldeado
Protective Sleeve Attached	Non
End 4 Inside Diameter	0.63 in
Hose Quantity	1 ensamble de manguera del calentador
Grade Type	Regular
Burst Pressure	125 PS
Axis 1 Length	4.5 IN
Axis 2 Length	3.5 IN
Branch Quantity	1 ensamble de manguera del calentador
Molded	Oui
Quick Connect Fitting Quantity	0
Coolant Hose Heat Shield Included	Non
Coolant Hose Type	Ramificado
End 1 Attachment Type	Espiga de la manguera
End 1 Type	Flared Tube
End 2 Attachment Type	Espiga de la manguera
End 2 Type	Tubo abocinado
End 4 Attachment Type	Hose Barb
Heat Shield Included	Non
Hose Attachment End 1	Flared Tube
Hose Attachment End 2	Flared Tube
Hose End (1) Outside Diameter (In)	0.64 in
Hose End (2) Outside Diameter (In)	0.53 in
Hose Material	EPDM
Hose Outside Diameter	0.94 in
Hose Overall Length (In)	5.2 in
Inside Diameter	0.62 in
Length	5.2 in
Maximum Bend Angle	26 Deg
Modular	Non
Modular Components Included	Clamp
Mounting Bracket Included	Non
Outside Diameter	0.94 in
Package Contents	2 5/8 in x 5/8 in Heater Hose Connectors
Protective Sleeve Included	Non
Thermostatically Controlled	Non
Maximum Bend Angle	26 Deg
Componentes modulares incluidos	Desconexión rápida
Componentes modulares incluidos	grampa
Contenidos del paquete	2 conectores de la manguera del calentador de 5/8in x 5/8in
Diámetro exterior del extremo de la manguera (1) (in)	0,64 in IN
Diámetro exterior del extremo de la manguera (2) (in)	0.53 In. IN
Extremo de fijación 1 de la manguera	Tubo abocinado
Extremo de fijación 2 de la manguera	Tubo abocinado
Hose End (1) Outside Diameter (In)	0.64 in IN
Hose End (2) Outside Diameter (In)	0.53 in IN
Hose Outside Diameter	0.94 In. IN
Hose Overall Length (In)	5.2 In IN
Inside Diameter	0.62 In. IN
Length	5.2 In in
Longitud total de la manguera (in)	5.2 in IN
Outside Diameter	0.94 In. IN
Tipo de extremo 1	Tubo abocinado
Tipo de fijación del extremo 4	Espiga de la manguera

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8708998175
UPC	00194883302709
VMRS Code	001001153
UNSPSC	25174006

DORMAN 626-001CD Cross References

Brand	Part Number
LSX	HPB10
Mishimoto Automotive	MMHOSE-LSHB-BK, MMHOSE-LSHB-RD, MMHOSE-LSHB-BL
