(888) 312-8812 Login SignupRAYBESTOS 56417 Raybestos Specialty - Truck Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 56417 Part Description
Manufacturer
Product Description

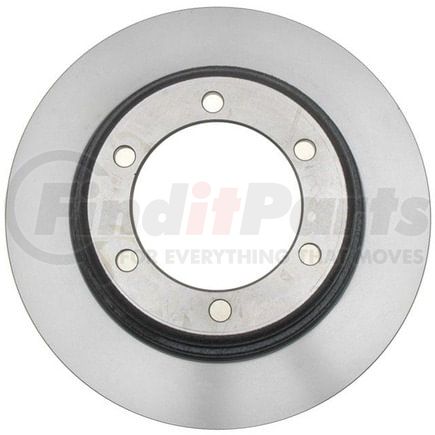

Raybestos Specialty - Truck Brake Rotor
Application Summary
1989-1983 GMC C7000 Front, 1989-1983 GMC C7000 Rear, 1989-1983 Chevrolet C70 Front, 1989-1983 Chevrolet C70 Rear, 1989-1988 GMC C6000 Front, 1989-1988 Chevrolet C60 Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 56417 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 5.404 IN |
| Center Hole Diameter | 137.25 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.22 IN |
| Discard Thickness | 31 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 6.75 IN |
| Mounting Bolt Hole Circle Diameter | 171.45 MM |
| Mounting Bolt Hole Diameter | 0.66 IN |
| Mounting Bolt Hole Diameter | 16.75 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.345 IN |
| Nominal Thickness | 34.15 MM |
| Outside Diameter | 14.75 IN |
| Outside Diameter | 374.65 MM |
| Overall Height | 3.81 IN |
| Overall Height | 96.75 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999746436 |
RAYBESTOS 56417 Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 177-816 |
| ADVANCE AUTO PARTS | 141583, YH141583 |
| AMERICAN REMANUFACTURED | 789-52005, 89-52005 |
| AUTOSPECIALTY | AR9005, AR9005E |
| AUTOZONE | 55000 |
| BENDIX | 141583, R449805 |
| BRAKE HEADQUARTERS | BR55000 |
| BRAKEBEST | 56417, 56417R, 56417RGS, BD125357 |
| CALIFORNIA DRUM & ROTOR | 125357 |
| CENTRIC | 120.80005, 121.80005, 120.80004 |
| CENTURY | 8517 |
| Casting Numbers | 210607-C, 23-105424, 325846 |
| Centric Parts | 120.80005, 121.80005 |
| DAYTON WALTHER | 23105248, 23105249 |
| DELPHI | RB678 |
| DURA CORP | BR55000 |
| EIS BRAKES | D17648 |
| EUCLID | E-9805 |
| FORMULA BLUE HYDRAULIC BRAKE PARTS | E12585010 |
| GM | 15500339, 15500340, 15514476 |
| GREN | 668802 |
| General Motors | 15500339, 15500340, 15514476 |
| MERITOR | R449805 |
| MIGHTY DISTRIBUTING SYSTEM | 55000 |
| NEWTEK AUTOMOTIVE | 55000 |
| Newtek Automotive USA | 55000 |
| QUALIS | 55000 |
| THE UNIVERSAL GROUP | 101002 |
| UAP | 55000 |
| Universal | 101002 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50599 |
| WAGNER | BD125357 |
| WAGNER BRAKE | BD125357 |
RAYBESTOS 56417 Fits Vehicles
- GMC C6000 (1988-1989)
- Chevrolet C60 (1988-1989)
- GMC C7000 (1983-1989)
- Chevrolet C70 (1983-1989)
