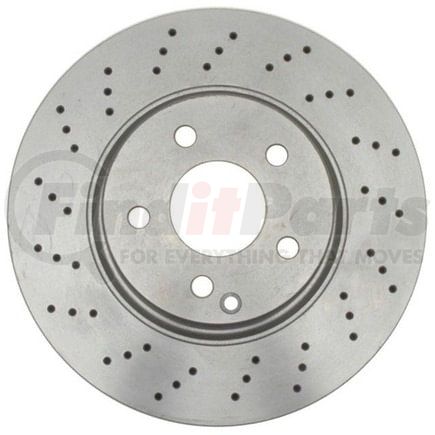

RAYBESTOS 980274 Raybestos Specialty - Street Performance Brake Rotor

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

RAYBESTOS 980274 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos Specialty - Street Performance Brake Rotor

Application Summary

2006-2003 Mercedes-Benz S430 Front, 2006-2003 Mercedes-Benz S500 Front, 2006-2003 Mercedes-Benz CL500 Front, 2006 Mercedes-Benz S350 Front

Features & Benefits

  • Application Specific Enhanced Iron
  • Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Cooling Vanes
  • The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
  • Application Specific Coating
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
  • Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
  • Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
  • Turned Finish
  • Turned finish minimizes noise and improves responsiveness for smoother stops.
  • S-Groove Slot
  • Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
  • Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.

RAYBESTOS 980274 Specifications

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.638 IN
Center Hole Diameter 67 MM
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 1.024 IN
Discard Thickness 26 MM
Harmonize Code 8708.30.5030
Mounting Bolt Hole Circle Diameter 4.409 IN
Mounting Bolt Hole Circle Diameter 112 MM
Mounting Bolt Hole Diameter 0.586 IN
Mounting Bolt Hole Diameter 14.9 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 1.102 IN
Nominal Thickness 28 MM
Outside Diameter 12.283 IN
Outside Diameter 312 MM
Overall Height 2.992 IN
Overall Height 76 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) IT
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00829352235652

RAYBESTOS 980274 Cross References

BrandPart Number
829352235652, 120.35064
ADVANCE AUTO PARTSYH145578, YH145578C, YH145578P
ATE BRAKE PRODUCTSSP28125, 428125
AUTOXTRAAX900612
AUTOZONE34254, 34254DG
BENDIX145578
BOSCH36010992
BRAKEBEST36010992, 36011000, 980274, 980274RGS
BREMBO09.8127.11
CENTRIC120.35064, 121.35064, 128.35064, 128.35064CRY, 228.35064, 320.35064F
CONTINENTAL-CONTITECHCW28125
Centric Parts120.35064, 121.35064, 128.35064, 128.35064CRY, 228.35064, 320.35064F
DURA CORPBR34254, BR900612
DuraGo900612, BR900612
MAGMA PRODUCTSPSR383047
MERCEDES-BENZ2204210912
MIGHTY DISTRIBUTING SYSTEM34254
NEOTEK1065540GF
NEWTEK AUTOMOTIVE34254
Newtek Automotive USA34254
OmnicraftQBRR631
PAGID355106872
PAGID Racing355106872
PILENGAV288
PROMAX14-34254
PRONTOBR900612
QUINTON HAZELLBDC5208
Qualis34254
TRW4149
UAP34254
VAICOV3080040
VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURINGX51674
WAGNERBD180136
WAGNER BRAKEBD180136
WINHERE662846DR

RAYBESTOS 980274 Fits Vehicles

  • Mercedes-Benz S350 (2006)
  • Mercedes-Benz S500 (2002-2006)
  • Mercedes-Benz S430 (2003-2006)
  • Mercedes-Benz CL500 (2003-2006)
