(888) 312-8812 Login SignupRAYBESTOS 56928R Raybestos R-Line Brake Rotor
$38699
Limited availability at this price!
In Stock
Get it by Friday, Feb 6
RAYBESTOS 56928R Part Description
Manufacturer
Product Description

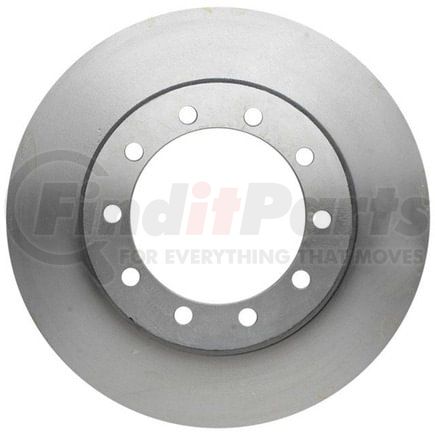

Raybestos R-Line Brake Rotor
Application Summary
2002-1997 GMC C7500 Topkick Front, 2002-1997 GMC C7500 Topkick Rear, 2002-1997 Chevrolet C7500 Kodiak Front, 2002-1997 Chevrolet C7500 Kodiak Rear, 2002-1997 GMC B7 Front, 2002-1993 Chevrolet B7 Front, 2002-1993 Chevrolet B7 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 56928R Specifications
Product Attributes
| Center Hole Diameter | 6.003 IN |
| Center Hole Diameter | 152.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.32 IN |
| Discard Thickness | 33.55 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 7.25 IN |
| Mounting Bolt Hole Circle Diameter | 184.15 MM |
| Mounting Bolt Hole Diameter | 7.25 IN |
| Mounting Bolt Hole Diameter | 184.15 MM |
| Mounting Bolt Hole Quantity | 10 |
| Nominal Thickness | 1.435 IN |
| Nominal Thickness | 36.45 MM |
| Outside Diameter | 15.385 IN |
| Outside Diameter | 390.8 MM |
| Overall Height | 3.4 IN |
| Overall Height | 86.35 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 10 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352465080 |
RAYBESTOS 56928R Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 177-0956 |
| ADVANCE AUTO PARTS | 145352, YH145352 |
| AUTOZONE | 55061 |
| BENDIX | 145352 |
| BRAKEBEST | 56928, 56928R, 56928RGS |
| CENTRIC | 121.80001 |
| Casting Numbers | 211281-C, 325927 |
| DAYTON WALTHER | 23-123434, 23-123434-002 |
| DURA CORP | BR55061 |
| EUCLID | E-11307 |
| FORMULA BLUE HYDRAULIC BRAKE PARTS | E12585006 |
| GM | 12547785 |
| General Motors | 12547785 |
| ISUZU | 8125477850 |
| MIGHTY DISTRIBUTING SYSTEM | 55061 |
| NEWTEK AUTOMOTIVE | 55061 |
| Newtek Automotive USA | 55061 |
| PROMAX | 14-55061 |
| UAP | 55061 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51657 |
| WAGNER | BD125488 |
| WINHERE | 442905 |
RAYBESTOS 56928R Fits Vehicles
- GMC T6500 (1997-2002)
- Chevrolet C7500 Kodiak (1997-2002)
- Chevrolet C5500 Kodiak (1990-1991)
- Isuzu FVR (1997-2002)
- Isuzu FTR (1996-2002)
- GMC T7500 (1997-2002)
- Chevrolet T7500 (1997-2002)
- Chevrolet T6500 (1997-2002)
- GMC B7 (1997-2002)
- GMC C7500 Topkick (1997-2002)
- Chevrolet B7 (1993-2002)
