RAYBESTOS 56418R Part Description
Manufacturer
Product Description

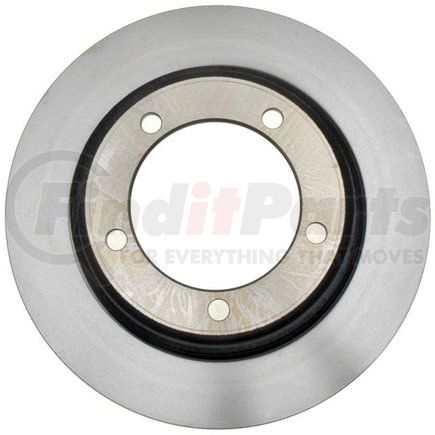

Raybestos R-Line Brake Rotor
Application Summary
1991-1980 Chevrolet B60 Front, 1991-1980 Chevrolet B60 Rear, 1991-1980 GMC B6000 Front, 1991-1980 GMC B6000 Rear, 1989-1983 GMC C7000 Front, 1989-1983 Chevrolet C70 Front, 1989-1988 GMC C6000 Front, 1989-1988 Chevrolet C60 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 56418R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 5.404 IN |
| Center Hole Diameter | 137.25 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.22 IN |
| Discard Thickness | 31 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 6.75 IN |
| Mounting Bolt Hole Circle Diameter | 171.45 MM |
| Mounting Bolt Hole Diameter | 6.75 IN |
| Mounting Bolt Hole Diameter | 171.45 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.345 IN |
| Nominal Thickness | 34.15 MM |
| Outside Diameter | 14.75 IN |
| Outside Diameter | 374.65 MM |
| Overall Height | 3.81 IN |
| Overall Height | 96.75 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352465035 |
RAYBESTOS 56418R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 141584, YH141584 |
| AMERICAN REMANUFACTURED | 89-52007 |
| AUTOSPECIALTY | AR9007, AR9007E, AR9009, AR9009E |
| AUTOZONE | 55002 |
| BENDIX | 141584 |
| BRAKE HEADQUARTERS | BR55002 |
| BRAKEBEST | 56418, 56418R, 56418RGS, BD125359 |
| CALIFORNIA DRUM & ROTOR | 125359 |
| CENTRIC | 120.80007, 121.80007, 121.80070, 121.80008 |
| CENTURY | 8521 |
| Casting Numbers | 210601-C, 210607-C, 23-105425, 325847 |
| Centric Parts | 120.80007, 121.80007, 121.80070 |
| DELPHI | RB618 |
| DURA CORP | BR55002 |
| EIS BRAKES | D17649 |
| FORMULA BLUE HYDRAULIC BRAKE PARTS | E12585012 |
| GM | 15500326, 15514470 |
| GREN | 669002 |
| General Motors | 15500326, 15514470 |
| MIGHTY DISTRIBUTING SYSTEM | 55002 |
| NEWTEK AUTOMOTIVE | 55002 |
| Newtek Automotive USA | 55002 |
| QUALIS | 55002 |
| STANDARD ROTORS AND DRUMS | 55002 |
| THE UNIVERSAL GROUP | 101021 |
| UAP | 55002 |
| Universal | 101021 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50600 |
| WAGNER | BD125359 |
| WAGNER BRAKE | BD125359 |
| WINHERE | YH2624 |
RAYBESTOS 56418R Fits Vehicles
- GMC B6000 (1980-1991)
- Chevrolet B60 (1980-1991)
- GMC C6000 (1988-1989)
- Chevrolet C60 (1988-1989)
- Chevrolet C70 (1983-1989)
- GMC C7000 (1983-1989)
