RAYBESTOS 980586 Raybestos Specialty - Truck Brake Rotor

$343.49

Limited availability at this price!

In Stock

Get it by Tuesday, Feb 10
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day

RAYBESTOS 980586 Part Description

Manufacturer

RAYBESTOS

Product Description

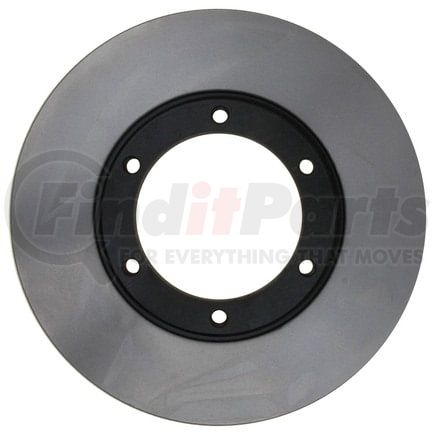

Raybestos Specialty - Truck Brake Rotor

Application Summary

2011-2005 Mitsubishi Fuso FE145 Front, 2004-2001,1999-1996 Mitsubishi Fuso FE-SP Front, 2009-2007 Sterling Truck 360 Front, 2011-2005 Mitsubishi Fuso FE145CC Front, 2001 Mitsubishi Fuso FE-CA Front

Features & Benefits

  • OE Fit, Form, and Function
  • Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
  • Cooling Vanes
  • We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
  • Coating
  • All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
  • All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
  • SAE Standard for Tensile Strength
  • Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
  • Turned Finish
  • A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box

RAYBESTOS 980586 Specifications

Product Attributes

ABS Tone Ring Included No
Bolt Thread Pitch 0.069 IN
Bolt Thread Pitch 1.75 MM
Center Hole Diameter 4.488 IN
Center Hole Diameter 114 MM
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 1.476 IN
Discard Thickness 37.5 MM
Harmonize Code 8708.30.5030
Mounting Bolt Hole Circle Diameter 5.512 IN
Mounting Bolt Hole Circle Diameter 140 MM
Mounting Bolt Hole Diameter 0.472 IN
Mounting Bolt Hole Diameter 12 MM
Mounting Bolt Hole Quantity 6
Nominal Thickness 1.575 IN
Nominal Thickness 40 MM
Outside Diameter 11.535 IN
Outside Diameter 293 MM
Overall Height 2.118 IN
Overall Height 53.8 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 6
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00829352623862

RAYBESTOS 980586 Cross References

BrandPart Number
BRPK5545, 829352623862
ADVANCE AUTO PARTSYH528125P
AUTOXTRAAX901556
BRAKEBEST980586, 980586RGS
CENTRIC120.46056, 121.46056
Centric Parts120.46056, 121.46056
DURA CORPBR31484, BR901556
DuraGoBR901556
Dynamic Friction Company600-60002
MITSUBISHIMC894846
NEWTEK AUTOMOTIVE31484
Newtek Automotive USA31484
PEP BOYS901556G
PROMAX14-31484
Qualis44793
WINHERE6621255

RAYBESTOS 980586 Fits Vehicles

  • Mitsubishi Fuso FE125 (2008)
  • Sterling Truck 360 (2007-2009)
  • Mitsubishi Fuso FE140 (2006-2007)
  • Mitsubishi Fuso FE145CC (2005-2011)
  • Mitsubishi Fuso FE145 (2005-2011)
  • Mitsubishi Fuso FE-HD (2002-2004)
  • Mitsubishi Fuso FE-CA (2001)
  • Mitsubishi Fuso FE-SP (1996-2004)
